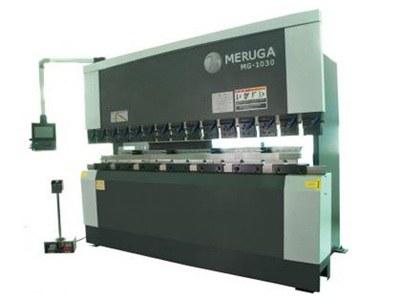

PRESS BRAKE
Model: MG-1030
Category: Machine Tools / Metal Forming Machine Tools / Bending Machines
Characteristics
Main Function for MG Series
Simple and Safe marking line function
Standard Footswitch equipment
The lower workbench stop position controlled by NC system
Speed change control by NC system
3 point Back-gauge block position
Changing the position of back-gauge block switch
Changing mold function
Easily bend the material to positive R-shape by program
Universal upper mold Quick Motion Clamping device
Specifications
Machine specification
Capacity：1000 kN
Working Length：3100 mm
Stroke length：100 mm
Back-guage stroke：500 mm
Max. pressure：33.1 mPa
Cylinder quantity：3
Hydraulic oil tank capacity：65 L
Machine weight：6600kg
PD-2/PD-3 (Control device) MERUGA
Control Method：Numerical control(by Panasonic)
Input Method：Touch screen
Display Method：10 inch LCD Display
Control Axis：2 axis/3 axis
Speed of L axis：Max.10 m/min
Speed of D axis：Max.1.2 m/min
Speed of Z axis：Max.6 m/min
Memory capacity：100 programs, each program contains 24 steps
Lower limit position control method：Actual encoder position reading
Speed change method：Actual encoder position reading
R step bending function：YES
Entry mode of program title：21 English letters or numbers are available
Processing quantity counter function：YES
