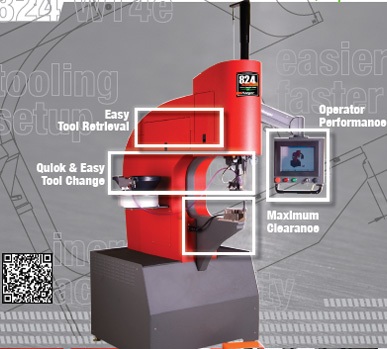

Haeger Fastener Insertion Machines
Model: 824 Window Touch-4e
Category: Machine Tools / Metal Forming Machine Tools / Riveting Machines
Characteristics
Introduction: Creating Hardware
Insertion Profit Centers
The new 824 WindowTouch-4e brings you:
1. Easier and faster tooling setup combined with the most reliable fastener feeding
2. Best workpiece accessibility
3. Easier and faster programming
4. Best Operator Ergonomics
5. Energy Saving
Learn how Haeger’s mission can become your profitability
• Are you still handling your parts multiple times?
• Are you still manually feeding the majority of your fasteners?
• Are you still experiencing substantial setup times on both new and repeat jobs?
• Are you still under the assumption that setting up automatic tooling is too complicated or too
time consuming?
Are you still experiencing:
• Missing fasteners?
• Fasteners inserted in the wrong location?
• Fasteners inserting on the wrong side of the part?
• Wrong length stud or standoff inserted?
• Parts scratched due to manual feeding in combination with multiple handlings?
We have taken your feedback seriously over the last 6 years and have developed multiple solutions
to address the challenges you are facing.
The integration of all these solutions are found in the new 824 WindowTouch-4e.
Easier and Faster Tooling Setup
A: MAS 350 – New Modular Autofeed System.
A unique new drive system in combination with a complete new bowl design incorporating all the latest bowl feeding technologies.
A long list of advantages, but what does this mean to you?
• Tool Change reduced from 3 minutes to 3seconds through a one piece tool module.
• No more manual bowl settings required.
Software automatically sets the proper vibration rate, air eject time and required air pressure to allow for failure free fastener feed. ‘From a full bowl down to the last one out.’ Reliable Feeding. Faster Changeover. No Training Required.
• Larger bowl design in combination with new drive allowing for fastener sizes M1.5 through M10 all to be fed in the same bowl.
• Deeper Bowl design in combination with new bowl tooling design allowing for fastener lengths up to 40mm all to be fed in the same bowl.
• New drive design allows for a 1 single toolpiece, resulting in faster and easier tool changes.
• Change in bowll material resulting in fasteners becoming less dirty from ‘air- dust’ or individual rubbing
• Lower mounting position allowing for easier filling and emptying.
B1: New T-Bracket and Shuttle with integrated Connectors eliminating alignment challenges.
Fastest and easiest setup in the industry.
Reduced from 2 minutes to 10 seconds without having to think about which connector goes where. On traditional machines, an operator had to change multiple air-lines and sensor cables, unnecessarily delaying changeover times.
In addition, operators required training for alignment of the T-Bracket and shuttle, which has been eliminated with this new system.
New re-designed Shuttle Plate Jaw Pins, eliminating breakage and saving cost for replacement and downtime.
B2: Pre-aligned Base Plate A pre-aligned base plate allows for easy tool holder changeover. No alignment of tools required. Where a tooling re-alignment after tool holder replacement used to take up to 5 minutes, this setup time has now been completely eliminated.
Best Workpiece Accessibility
D1. Lower Support Arm
200mm more access on lower support arm – matching the HP 6 model.
Through the use of built-in reinforcements and a change in frame design, the 824 WindowTouch-4 now offers more accessibility on the lower support arm compared to the ‘Legendary HP 6’.
Haeger 824 Plus, 824WT-1, 824WT-2, 824WT-3
Haeger 824WT-4e
Haeger HP6
D2. The ‘Star Design’ Turret Insertion System (TIS)
allows for access in ‘U-Shaped profiles’. Compared to a round Turret Design, the Star Design offers maximum accessibility for a variety of pre-formed workpieces. The Turret Insertion System clamps the tools in position while providing Position Feedback, eliminating the famous‘missing fastener’ error.
D2 The ‘Star Design’ Turret Insertion System (TIS) allows for access in ‘U-Shaped profiles. Compared to a round Turret Design, the Star Design offers maximum accessibility for a variety of pre-formed workpieces
D3. The turret arms are individually removable, allowing for even more access while the position feedback (and process control) remains present.
D3 The Turret arms are individually removable, allowing for even more access while the position
feedback (and process control) remains present
E1. Manual J-Frame in combination with 24” (610mm) throat depth.
Changeover from Automatic Top Feeding to using a J-Frame is now done within seconds. This makes it a more attractive to use feature for a variety of pre-formed workpieces. The Haeger J-Frame solution allows for insertion under flanges up to 1mm from the bending line.
E2. J-Frame in combination with ABFT
(Automatic Bottom Feed Tool) Unique in the industry is the Automatic Bottom Feeding of Nuts in combination with a J-Frame to maximize productivity and increase ergonomics for those workpieces requiring installation under return flanges.
Best Operator Ergonomics:
F. Operator control pendant can be adjusted in 6 directions, allowing for easy access and a great view of screen instructions while standing up or sitting down.
Energy Saving:
G. New variable speed hydraulics reduce energy consumption up to 30% compared to conventional
hydraulic systems.
Easier and Faster Programming:
H1: The all new intuitive Version 10 Insertion LogicR Software with Insertion Graphics and
Integrated Statistic Process Control allows for more functionality while reducing programming time.
H2: V 10 Insertion LogicR provides you with the recommended operating time for the part
programmed and monitors and stores any corrected errors during the insertion process, allowing you to provide this data with your deliveries to your customers.
I. Automatic Tooling:
Upper Tools, Lower Tools and Shuttle Plates are compatible with previous Haeger machine models. The One-Piece Multi-module for the MAS-350 Autofeed System reduces total components per set from 5 to 4.
I1: Shuttle Standoff Set
I2: Shuttle Nut Set
I3: ABFT (Automatic Bottom Feed) Set
