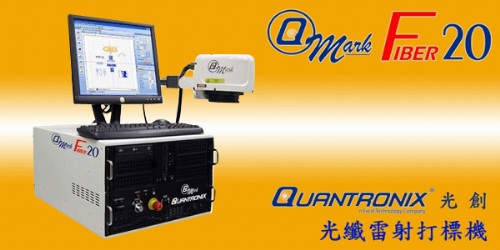

Qmark Fiber20
Model: Qmark Fiber20
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Other Printing Machines
Characteristics
1.Superior Marking Quality
2.High Speed and Accuracy
3.Compact Footprint for Ease of lntegration
4.Lowest Operating Costs
5.Available in Class l Workstation or as OEM Equipment
6.lndustry-proven
製造商: Quantronix Corporation
http://www.quantronixlasers.com/
台灣總代理:協立機械(股)公司
http://www.slmc.com.tw/
Specifications
QUANTRONIX QMARK FIBER20\Qmark FIBER20
Mechanical and Utilities Requirements (Size/Weight):
Optical Head (L*W*H/Wt) 9.0*7.4*7.5'(229*188*191mm)/11 lbs(5.0kg)
Main Controller(L*W*H/Wt) 23.0*17.5*12.0'(584*445*305mm)/97 lbs(44kg)
Electrical Service: Single Phas 115 VAC ± 10 VAC; 50/60 Hz
Typical Current Consumption:7-9 A
Output:20w
Environmental:Operating Temperature:33 - 91°F /Relative Humidity:10 - 95%
Umbilical Length:10' (3.0m)
Laser Wave(nm): Engraving ...1062 / Pointer...660
