Hitachi Ink Jet Printer, Hitachi IJP, Hitachi IJ Print
Model: PXR-H450W / PXR-P460W
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Other Printing Machines
Characteristics
Achieve high speed and clear printing quality, the pursuit of operational convenience and reliability, the corresponding wide range of applications in the printing.
Hitachi industrial computer systems using ink jet printing machine by the air jet printing of non-contact type high-speed printing machine.
It features the appearance of both items is printed on the shape, material, surface thickness, bump, soft and hard and so on. Both high-speed printing. Another text, text type, printing size, can be set using a simple touch panel operation to achieve, can be free of any article the active use of printing.
Specifications
Product Model PXR-H450W / PXR-P460W are as follows:
Model: PXR-H450W
Printing lines: four lines maximum
Printing Words: Line 1: 240 characters Line 2: 120 words
Line 3: Line 4 80 characters: 60 characters
Shaped matrix (horizontal × vertical)
1 to 4 lines: 5 × 8 (or5 × 7) 1 ~ 3 lines: 5 × 5,5 × 8 (or5 × 7), 1 ~ 2 Line: 5 × 5,5 × 8 (or5 × 7), 7 × 10 (or9 × 7,9 × 8) 1 Line: 5 × 5,5 × 8 (or5 × 7), 12 × 16
Printing height: 2 ~ 6.5mm
Display and input devices
Display: Color LCD (10.4 inch) touch screen in Chinese (English screen) Input devices: touch-input
Maximum print speed: 3,100 words / sec
Print head: single nozzle
Printing direction: in any direction
Standard font: case letters, numbers, common symbols, half-width characters, spaces. Multiple of 1-9 times the Chinese character printing
Commonly used special characters (manufacturing, year, month, day and enjoy the taste, period ... ...)
Characters and content: built-in user free function defined in the Private
Printing function: date counting, basic counting, data storage, hybrid printing, bar code, speed tracking, printing and other reciprocating
Nozzle line length: the length of 4 m
Power: AC100-120/200-240V ± 10% 50/60Hz 150VA
Body shape: Deep 315 × W 400 × high 515 (mm), stainless steel housing IP55
Weight: 25 kg
Applicable Material: Paper, PVC, PET, electric wood, iron, aluminum, specialty metals, rubber, and other uneven surface material ... ...
Note: If the humidity is above 85% RH, use a dry air within the print head cleaning spray
Model: PXR-P460W
Printing lines: four lines maximum
Printing Words: Line 1: 240 characters Line 2: 120 words
Line 3: Line 4 80 characters: 60 characters
Shaped matrix (horizontal × vertical)
1 to 4 lines: 5 × 5,5 × 8 (or5 × 7), 9 × 8, (or9 × 7) 1 ~ 3 lines: 5 × 5,5 × 8 (or5 × 7), 7 × 10 (or9 × 7,9 × 8) 1 ~ 2 Line: 12 × 16,1 line: 18 × 24,24 × 32
Printing height: 2 ~ 10mm
Display and input devices
Display: Color LCD (10.4 inch) touch screen in Chinese (English screen) Input devices: touch-input
Maximum print speed: about 2,000 words / sec
Print head: single nozzle
Printing direction: in any direction
Standard font: case letters, numbers, common symbols, half-width characters, spaces. Printing multiples of 1-9 times
Chinese characters: common special characters (manufacturing, year, month, day and enjoy the taste, period ... ...)
Characters and content: built-in user free function defined in the Private
Printing function: date counting, basic counting, data storage, hybrid printing, bar code, speed tracking, printing and other reciprocating
Nozzle line length: the length of 4 m
Power: AC100-120/200-240V ± 10% 50/60Hz 150VA
Air supply needs :0.2-0 .4 MPa

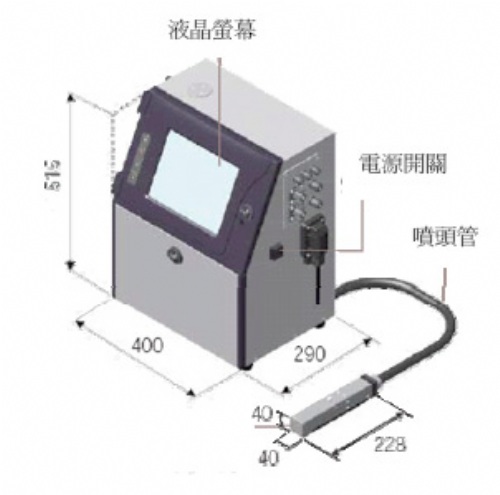

Body shape: Deep 290 × W 400 × high 515 (mm), stainless steel housing IP55
Weight: 25 kg
Applicable Material: Paper, PVC, PET, electric wood, iron, aluminum, specialty metals, rubber, and other uneven surface material ... ...
Note: If the humidity is above 85% RH, use a dry air within the print head cleaning spray
