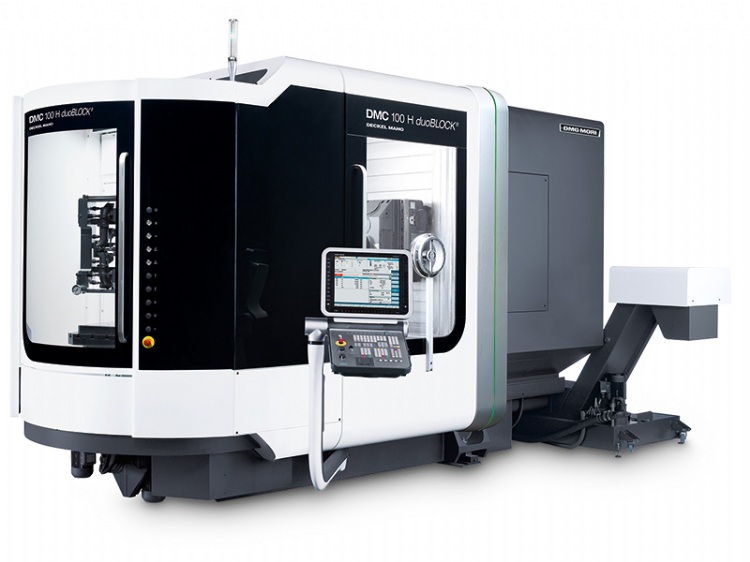

DMC 100 H duoBLOCK
Model: DMC
Category: Machine Tools / Milling Machines / CNC Milling Machines
Characteristics
Production at the highest level: The Horizontal Machining Centres of the duoBLOCKR series allow the user to efficiently and economically manufacture challenging parts in serial production at the highest precision and the shortest machining time.
Highlights:
- Pallet size: 800 x 800 mm
- Maximum workpiece size o 1.000 × 1.600 mm and table loads up to 2.000 kg
- Main drive as powerful SK50-motor spindle with 12,000 rpm., 52 kW / 430 Nm (40% DC) or as SK50 gear spindle with 8,000 rpm. up to 52 kW / 1,500 Nm (40% DC)
- Max. tool length 650 mm, max. diameter o 400 x 280 mm and weight up to max. 30 kg
- duoBLOCKR design for the highest precision and dynamics and best access to the workspace
- High feed force up to 16 kN (100% DC) in the linear axes
