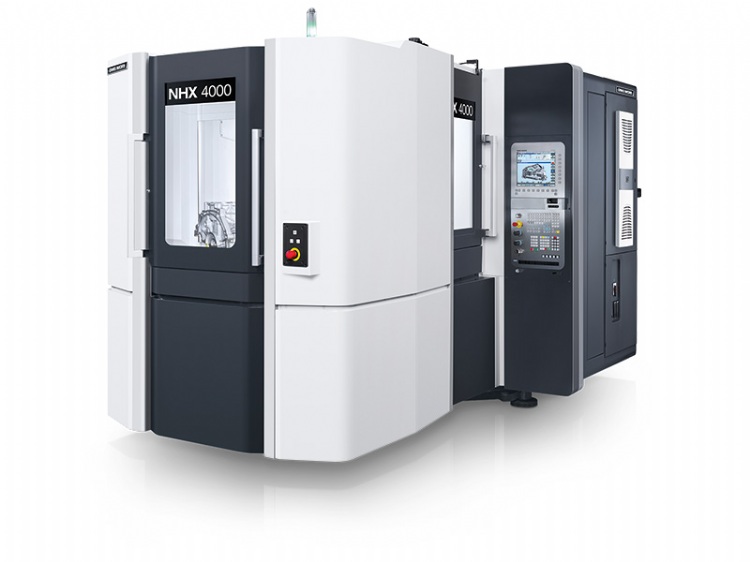

NHX 4000 – Siemens Version
Model: NHX 4000 – Siemens Version
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Material Handling Equipment
Characteristics
The compact precision NHX 4000 horizontal machining centre offers the perfect combination of functionality, productivity and precision. As part of the cooperation initiative between DMG and MORI SEIKI, the NHX 4000 will be built by DECKEL MAHO in Pfronten and will be available with Siemens 840D solutionline as well as MAPPS IV. The parts spectrum can handle work pieces up to 630 mm in diameter and 900 mm in height with an work area of 560 × 560 × 660 mm. This is thanks to the 400 × 400 mm sized pallet.
Highlights:
- Pallet size 400 x 400 mm and pallet load of 400 kg
- Powerful standard spindle with 12.000 rpm and 110 Nm
- Height acceleration with 9 m/s2 (Y-axis) and rapid speed with 60 m/min
- Chip-to-chip-time min. 2,8s
- Height Stability: Inherently stiff bed and graded traveling column with 3-point-support
- Very quick pallet indexing time 90° of 0,56 s (NC-rotary table)
- Low footprint with 12,5 m2
