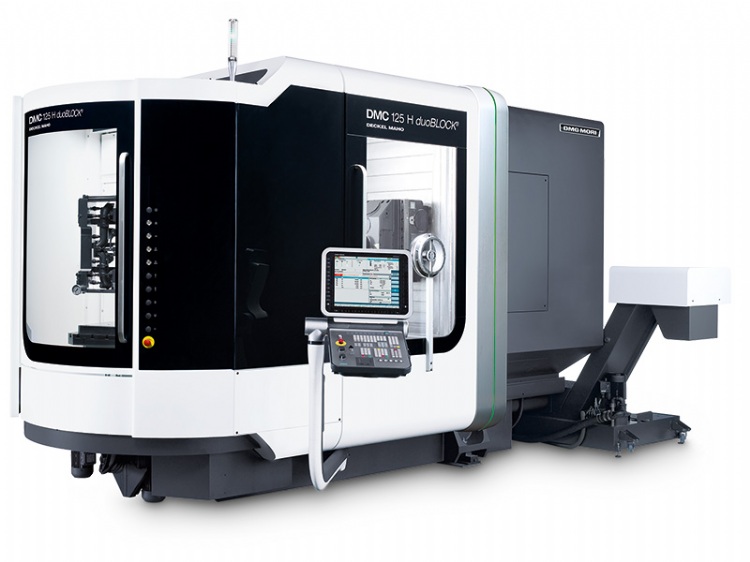

DMC 125 H duoBLOCK
Model: DMC
Category: Machine Tools / Milling Machines / CNC Milling Machines
Characteristics
Large traverse paths of 1,250 x 1,000 x 1,050 mm and a high pallet load up to 2,000 kg are possible with the new space-saving pallet-exchange design. In addition, rear chip disposal for a space-saving construction are only some features that contribute to efficient production.
Highlights:
- Pallet size: 800 × 800 mm
- Maximum workpiece size o 1.250 × 1.600 mm and table loads up to 2.000 kg
- Main drive as powerful SK50-motor spindle with 12,000 rpm., 52 kW / 430 Nm (40% DC) or as SK50 gear spindle with 8,000 rpm. up to 52 kW / 1,500 Nm (40% DC)
- Max. tool length 650 mm, max. diameter o 400 × 280 mm and weight up to max. 30 kg
- duoBLOCKR design for the highest precision and dynamics and best access to the workspace
- High feed force up to 16 kN (100% DC) in the linear axes
