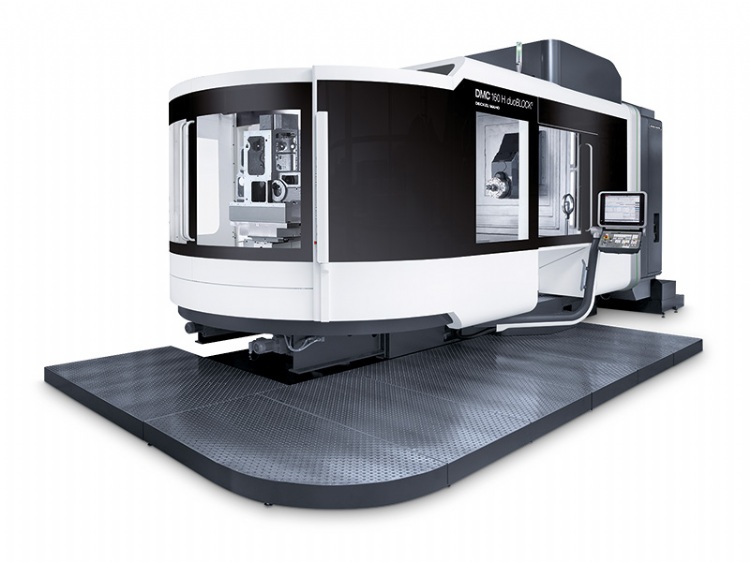

DMC 160 H duoBLOCK
Model: DMC
Category: Machine Tools / Milling Machines / CNC Milling Machines
Characteristics
Large travel from 560 × 600 × 600 mm up to 1,600 × 1,100 × 1,400 mm, high pallet load tolerance of 3,000 kg with the new space saving pallet changer concept and chip removal to the rear are just a few of the factors that contribute to efficient production. Optimal accessibility to the setup area and workspace, a variety of spindle options and other process optimising options round out this concept.
Highlights:
- Maximum workpiece size o 1,530 × 1,295 mm and pallet load of 3,000 kg
- Main drive as powerful SK50 motor spindle with 12,000 rpm., and 52 kW / 430 Nm (40% DC) alternative SK50 gear spindle with 8,000 min up to 52 kW / 1,500 Nm (40% duty cycle)
- Tool length up to 650 mm, diameter max. o 400 × 250 mm and weight up to max. 30 kg
- duoBLOCKR-design for maximum accuracy, dynamics, optimum access to machining area
- High feed power up to 15 kN (100% duty cycle) in the linear axes
- Vertical chain magazine wit 60 tool pockets, optional up to 240 pockets
