Specifications

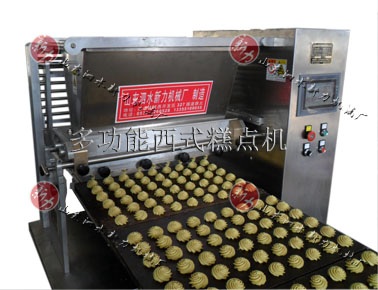

      XL-QQ600 multifunctional Western pastry machine is my factory introduced the latest advanced technology and scientific research institutions, and universities joint research and development of high-tech products, is the most advanced domestic production of food machinery unique fancy cakes and all kinds of cookies.

该机具有以下特点：一、整机为铝合金框架结构，具有较强的刚度，和优良的结构稳定性能，机架底部配有四个万向地脚轮，便于移动及稳固。二、该机采用触摸屏人机界面操作系统，光电控制、伺服电机驱动，具有快速准确，运动平稳之优点。三、该机具有自动走排，自动排盘功能，坯料行距可根据需要任意设定。四、该机配有多种模具，能生产多种花样的曲奇食品，花型种类可以根据客户需要定制，可任意调整花型、扭花角度、设定重量和生产速度，定量准确，快速高效。五、该机设有安全防护网，打开防护网，机器将自动停止，安全可靠。六、该机外形美观大方，外罩全部为304不锈钢材料，与食品接触的部位全部符合国家食品标准要求，卫生、安全、可靠。

      This machine has the following characteristics: first, the machine for aluminum alloy frame, strong rigidity, and excellent structure stability, the bottom part of the frame is equipped with four universal to casters, convenient movement and strong. Two, the machine adopts touch screen man-machine interface operating system, photoelectric control, servo motor drive, has the advantages of fast and accurate, stable movement. Three, this machine has the automatic go row, automatic scheduling disk function, blank row spacing can be arbitrarily set. Four, the machine is equipped with a variety of mold, can produce a variety of patterns of cookies food, flower type can be customized according to customer needs, can be arbitrary adjustment of flower type, twisting angle, set the weight and the speed of production, accurate, fast and efficient. Five, the machine is equipped with safety protection net, open the protective net, the machine will automatically stop, safe and reliable. Six, the machine is beautiful and graceful, cover all 304 stainless steel materials, and food contact parts are in conformity with the requirements of national food standards, health, safety, and reliability.

Using this machine will greatly enhance the grade of products, improve the production capacity, save labor, reduce production costs, will bring good economic benefits to the food production enterprises.

产品结构及工作原理

The product structure and working principle

该机由铝合金机架、伺服电机动力系统、托盘帆布传动系统、托盘上下升降系统、喂料辊机构、钢丝切割系统等组成。该机所有动力部分为伺服电机，配有高质量的减速机，高敏捷性能的光电控制系统、及人机界面触摸屏操作系统，生产速度、产品形状可以根据实际需要进行设定。

The composition of the machine is made of aluminum alloy frame, servo motor power system, transmission system, tray tray canvas upper and lower lifting system, feeding roller mechanism, wire cutting system. The machine all the power part of the servo motor, the reducer has a high quality, Gao Minjie performance of the photoelectric control system, and the man-machine interface touch screen operating system, production rate, the shape of the product can be set according to the actual need.

其工作原理为：将调制好的面料放入料斗，通过喂料辊喂料及成形模具旋转挤出，而成为曲奇（糕点）坯料；托盘放置在具有升降功能的传送带上，传送带可实现各种技术参数的运动。使用、操作、维护都十分方便。

Its working principle is: modulated the fabric into the hopper, through the feeding roller feeding and forming die rotary extrusion, and become the cookies (cake) blank; the tray is placed on transfer with lifting function belt, conveyor belt can realize all kinds of technical parameters of motion. The use, operation, maintenance is very convenient.

The main technical parameters

电源功率：380/220V，1.66kw 外形尺寸：1780*1150*1430mm

Power: 380/220V, 1.66kw size: 1780*1150*1430mm

机器重量：320kg 料辊直径：¢90mm

Machine weight: 320kg material roll diameter: Phi 90mm

料辊长度：600mm 生产能力：100---160kg/h

Roller length: 600mm production capacity: 100---160kg/h
