Sliding Table Saw Series

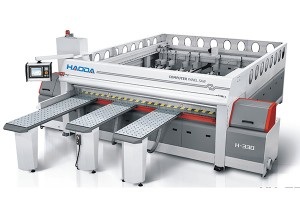

Model: H330 Automatic Panel Sizing Saw
Category: Woodworking Machinery Industry / Woodworking Machinery Component / Woodworking Machinery Component
Characteristics
This machine adopts a high-speed signal touch screen, which is smart in response and highly cooperate with the operator.With a fault self-testing capability, the locations of faults can be seen on the screen, which will suggest the operator repair in-scope to ensure that the repair is very easy.
Specifications
Main technical parameter
| Max.cutting width | 3260mm |
| Max.cutting length | 3100mm |
| Max.cutting thickness | 110mm |
| Diameter of main saw blade | φ400mm(Max.φ420)×φ75mm |
| Diameter of guiding saw blade | φ160mmxφ45mm |
| Rotation speed of main saw blade | 4800rpm |
| Rotation speed of guiding saw blade | 6500rpm |
| Forward speed of saw carriage | 4-80m/min |
| Backward speed of saw carriage | 120m/min |
| Driving motor of main saw | 15KW |
| Driving motor of guiding saw | 1.5KW |
| Driving motor of saw carriage | 1.5KW |
| High-pressure air-supply motor | 3Hp |
| Automatic feeding motor | 1.5KW(AC) |
| Automatic feeding speed | （Max.）80m/min |
| Height of worktable | 920mm |
| Compressed air pressure | 6-8kg/cm2 |
| Machinesize(LxWxH) | 6650x5360x2012mm |
