Sliding Table Saw Series

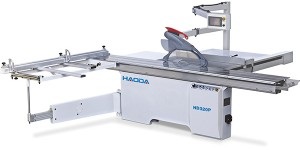

Model: HD320PA Sliding Table Saw
Category: Woodworking Machinery Industry / Woodworking Machinery Component / Woodworking Machinery Component
Characteristics
With 410mm (16-1/8〃) extra large width, Harvey exclusive “Honeycomb” structure of sliding table provides outstanding strength for heavy working loads. The honeycomb section design also prevents table from twisting deformation, which dramatically improves quality of cuts finish. The whole table is made of T-6 aircraft grade aluminum extrusion, precisely machined to maximum accuracy. This special design secures extraordinary working life of Jumbo panel saws.
Specifications
Panel Saw technical parameters
Super version
| Guide shaft spindle: ∮50 | Advanced LED readout |
| Full size addition table | Main motor 5.5KW |
| Lubrication pump | Scoring motor 0.75KW |
| Support feeding frame | Steel Pressure kit |
| 2nd generation front control panel hood | Manual tilting 45° |
| Type-R protection hood(Optional part) | Max saw blade 350mm |
Main technical parameter
| Dimension of sliding table | 3200×430mm |
| Gross cut capacity | 3200mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300mm(φ250-φ350) |
| Height of cut | 80mm |
| Diameter of guide shaft spindle | ∮50mm |
| Speed of main saw spindle | 3000/4000/5000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade | 45° |
| Main motor | 5.5KW |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade | 8000r/min |
| Scoring spindle diameter | 20mm |
| Scoring motor | 0.75kw |
| Net weight | 700kg |
| Gross weight(with wooden package) | 850kg |
| Overall dimensions | 3250×3500×870mm |
