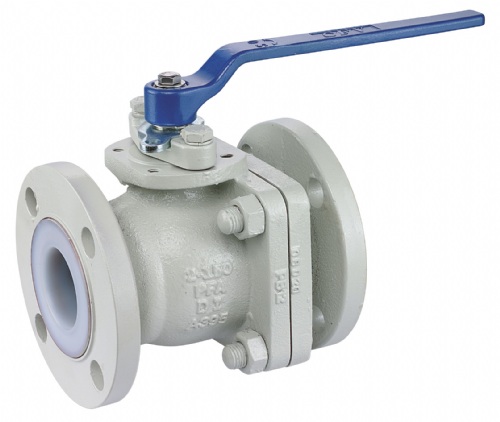

PFA Lined Ball Valve(ANSI CLASS 150)
Model: PB12D(ANSI CLASS 150)
Category: Machinery Parts and Components / Piping Systems (Pipes, Valves, Fittings) / Flanges
Characteristics
Tailor-made to operate in high-purity or highly-corrosive environments, Bueno PFA lined ball valves are resistant to chemicals, durable, and cost efficient. They are especially suited to semiconductor and pharmaceutical industries, where the safety and stability of the manufacturing process are of utmost importance.
Specifications
Available Dimensions:1/2"~6"
Material:ASTM A395-FCD
Pressure Grade:ANSI CLASS 150
Operating Temperature:-30℃~+160℃
Maximum Operating Pressure:275psi
Valve Body Design:ASME B16.34
Face to Face:PB12 acc. to ASME B16.10
Joints:Flange ASME B16.5 CLASS 150 RF
