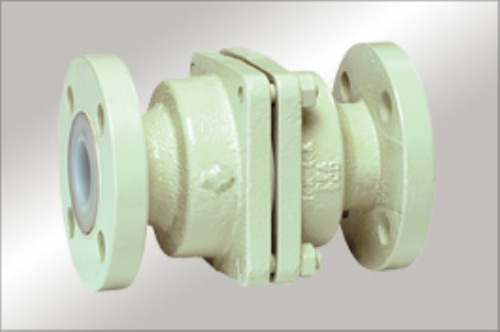

PFA Lined Check Valve
Model: PC-11D(ANSI CLASS 150)、PC-51D(JIS 10K)
Category: Machinery Parts and Components / Piping Systems (Pipes, Valves, Fittings) / Flanges
Specifications
Pressure grade: ANSI CLASS 150 / JIS 10K
Material:PC-11D(A395-FCD)、PC-51D(A395-FCD)
Maximum operating pressure: Flow:250psi(17.6kgf/cm2) , Check: 150psi(10kgf/cm2)
Valve body thickness: ASME B16.42
Face to face: ISO 5752(LONG)
Operating temperature: -30℃ ~100℃
Universal installation orientation
Low pressure applications and no back pressure to seat lining thickness is atleast 3 mm
