Telesis PINSTAMP® SINGLE PIN MARKING SYSTEM

Enlarge

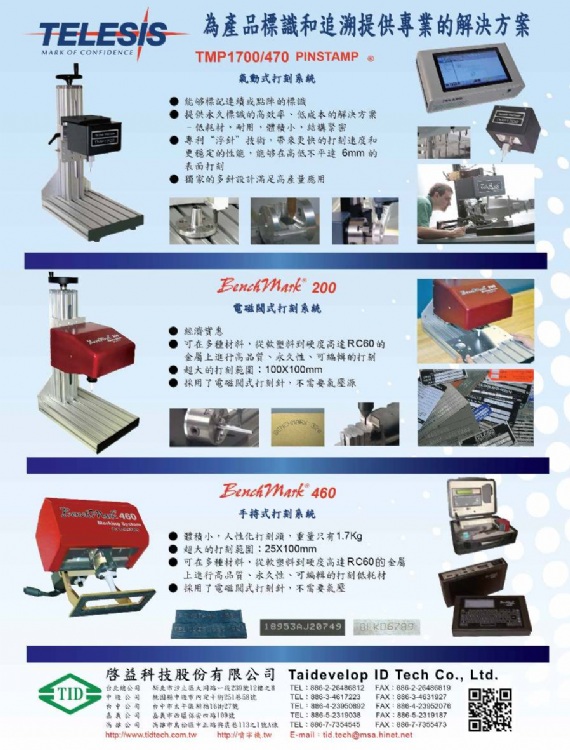

Telesis PINSTAMP® SINGLE PIN MARKING SYSTEM

Model: TMP1700/470

Category: Machine Tools / Milling Machines / CNC Engraving Machines

Online Inquiry

Characteristics

The TMP1700/470 is the lowest cost PINSTAMP® Marking System. The rugged
TMP1700 marking head features a compact, 1-1/2˝ x 2-1/2˝ (38.1 x 63.5mm)
window, and marking speeds up to six characters per second. It’s an excellent
choice for many factory-automated or on-line processes.

Specifications

FEATURES
• 1-1/2˝ x 2-1/2˝ (38.1 x 63.5mm) Marking Window
• Rugged, low-maintenance X/Y platform
• Compact Marking Head — approximately
6.6˝ x 6.2˝ x 4.7˝ (168 x 158 x 120mm)
• Marks a wide range of materials from soft plastics to
hardened steel — up to Rc60
• Shutter assembly protects marking head from solid
and liquid contaminants
• Self-Contained, state-of-the-art TMC470 controller
features two serial ports, USB port and ethernet port.
(see page 21)
• Dot density up to 200 dots per inch (79 per centimeter)
• Choice of Interchangeable Marking Pin Types for
depths from .001˝ - .018˝ (.03 - .45mm)
• Pin travel accommodates surface irregularities
to .25˝ (6mm)
• Automatically generates serial numbers, time, date
and shift codes
• Stores up to 200 marking patterns
• Easily interfaced to PLCs (Programmable Logic
