AUTOMATIC SERVO VENEER CORE BUILDER(Composer)

Enlarge

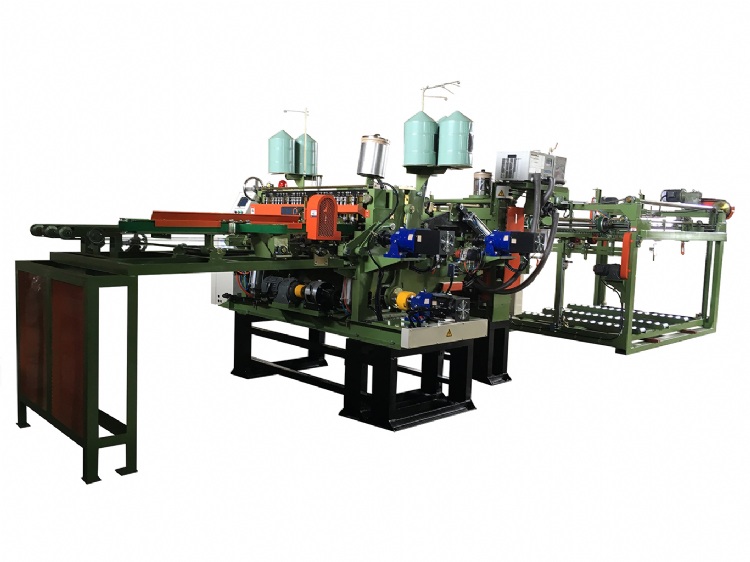

AUTOMATIC SERVO VENEER CORE BUILDER(Composer)

Model: HS-ASCB-4

Category: Woodworking Machinery Industry / Bonding/ Pressing/ Forming Machinery / Hot Press Lumber Composer

Online Inquiry

Characteristics

1.This machine is equipped with servo control system and 2-step speed setting to co-
operate the function of operation, manufacture and development.

2.The conveyor system and cutting system are controlled by servo system with directly
drive. The machine is set in 2mm from edge cutting or broken hole cutting to the
straight line. The range can be reset according to the actual condition.

3.The program of servo system which is developed by our company is designed with
humanistic considerate. As long as the operators react nimbly in feeding the veneer,
the operating speed is available for resetting anytime when need to increase the capacity.

Specifications

DESCRIPTION		HS-ASCB-4
Length of knife		1350mm
Working veneer core width		968mm to 1270mm（3ft to 4ft）
Working veneer length		1220mm to 2560mm（4ft to 8ft）
Veneer core thickness		1.5 mm to 4.0 mm
進料速度 Feeding speed		33m ~ 36m∕min（Adjustable）
Thickness detecting		20
Over thickness detecting		3
Edge-gluing points		30
Servo Motor	In-feed	2 KW×1
	Random clipper	3.5 KW×1
	Out-feed	2 KW×1
Motor	Waste separator	2.25 KW×1(clutch)
	Full-size clipping	2.25 KW×1(clutch)
	Cooler unit	0.4KW×1
	Heaters	6.5 KW×1
	Fan	0.4KW×1, 0.75KW×1
	Stacker lifting	2.2 KW×1
	Stacker feeding	0.4 KW×2
Power supply		23.1 KW
Machine Dimension(Approx.)		9600×3200×2500(L×W×H)
Machine weight		N.W.7200Kgs
