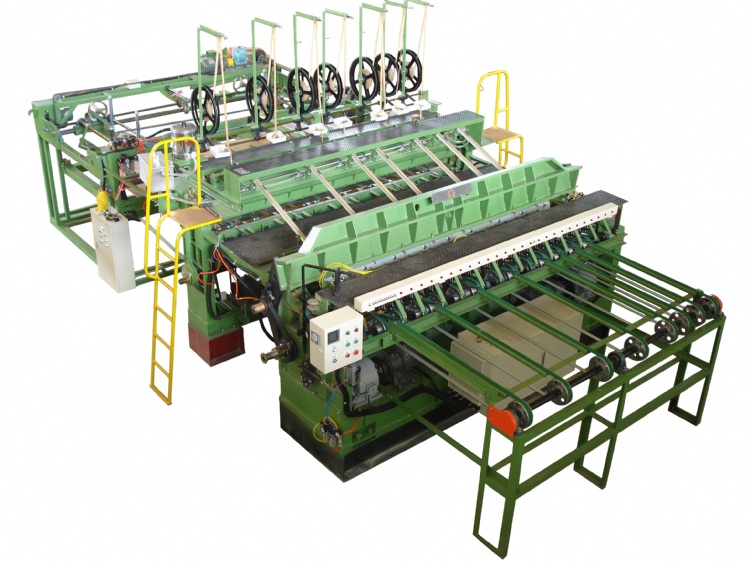

Back Veneer Composer
Model: HS-BVCW-8
Category: Woodworking Machinery Industry / Bonding/ Pressing/ Forming Machinery / Hot Press Lumber Composer
Characteristics
1. Save materialGUsing NC type electronic detector reduced odd back veneer to
minimum wasting 5mm.
2. Save labor GOperation is very simple, one or two workers are available.
3. High qualityGThrough electronic detector, jointing by glue paper, we can produce
very average thickness back veneer and available thickness 0.5mm ~ 1.2mm.
4. You can easily adjust the 6'~8' size to match your requirement for use.
5. The stacker is the latest conveyer stacker which make the stack orderly and keep
well-arranged.
6. Raising product quantityGWith 3pcs sliced veneer jointing to one piece (4'8').
One hour can produce over 190pcs perfect back veneer.
Specifications
DESCRIPTION |
HS-BVCW-8 |
|
Working veneer length |
1,800-2,600mm |
|
Min. Working veneer width |
50mm |
|
Thickness detecting point |
26points |
|
Taping position |
7position |
|
Veneer feeding speed |
20m/min |
|
Automatic cutting width |
900-1,300mm |
|
Motor |
Feed |
1.5KW 4p × 1/29 |
Cam drive |
2.2KW 4p × 1/29 |
|
Conveyor before clipper |
0.4KW 4p × 1/30 |
|
Conveyor after clipper |
0.4KW 4p × 1/10 |
|
Delivery conveyor |
0.4KW 4p × 1/10 |
|
Veneer dropping |
0.4KW 4p × 1/10 |
|
Stacker lifting |
1.5KW 4p |
|
Full-size clipper |
2.2KW 4p |
|
Area occupied |
5.0Mw × 9.6ML |
|
Machine weigh |
N.M.9,325kg |
|
Measurement |
50M3 |
