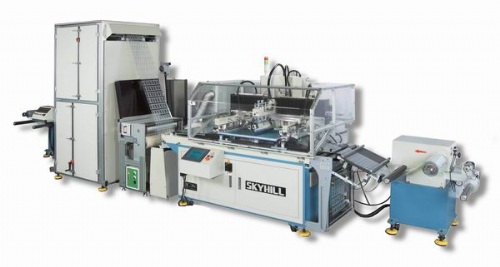

Roll to Roll WEB-FED Screen Printing Equipment
Model: MT-5070
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Label Printing Machines
Characteristics
1.Heat transfers.
2.Electronics-FPC (Flexible Circuits),Membrane Switch,IMD and Diffusers etc.
3.Specialized labels for UL/CSA,wine and liquor bottles, Cosmetics and Shampoo Bottles,as well as Industrial,Toy, Automotive,Compact Disc and Video products.
4.Nameplates and graphic Overlays.
Specifications
Model MT-5070
Max.printing area 500 x 700mm
Max.size of screen frame 800 x 1100 mm
Mim. size of screen frame 800 x 700 mm
Max.material diameter Φ500 mm
Unwinder core diameter Φ75 mm
Max. rewinding diameter Φ500 mm
Winder core diameter Φ75 mm
Machine Speed 600 m/hr
Travel 800 mm
Thickness of material 0.025-0.5 mm
Positioning accuracy ±0.03 mm
