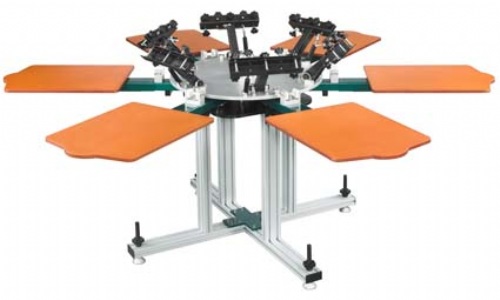

T shirt Screen Printing Machine
Model: MT-606T
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Other Printing Machines
Characteristics
1. The board is not made of the conventional wood or aluminum. This unit employs a specially designed Bakelite shirt board to fully overcome warping problems.
2. The adoption of a gas spring, instead of a metal spring, ensures smooth operation.
3. Manually operated.
4. The unit is well suited for printing on knitting, textile garments and piece goods.
5. Use in conjunction with a T-shirt dryer to greatly increase the impression of the printed image.
6. Six-color screens are continuously driven and accurately positioned by a rotary disk.
7. One operator can print continuously up to 6 substrate on one machine.
Specifications
MAXIMUM PRINTING AREA 400 X 500 mm
PRINTING STATION 6 stations
PRINTING COLOR 6 colors
DIMENSION OF MACHINE L2300 x W2300 x H1070 mm
MACHINE WEIGHT 150kgs
