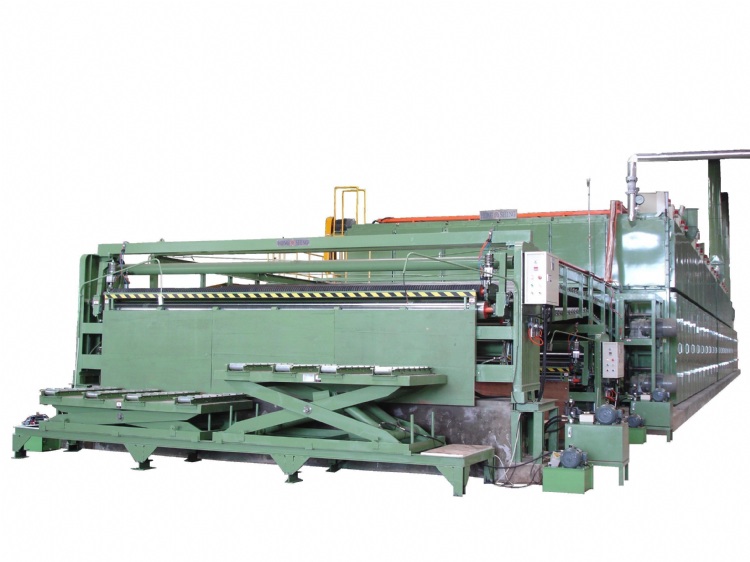

Veneer Roller Dryer



Model: HS-4RD-18H/S+4C/S-5.3M

Category: Woodworking Machinery Industry / Dust Collecting Incinerator, Drying / Dehumidification Wood Dryer



Online Inquiry





Characteristics



1. The dryer consists of mount of dried veneer those we need, the fan and air cooling fin
of heater on each section, the hot steam produced by impeller of heater was sent into
the injector wind conduit was installed on the every section.（perpendicularly blew
two parts of veneer, therefore the dryer have much high drying speed and efficiency）
2. When transporting the veneer by each layer, they were separated into（the first、
second layer）、（the third、 fourth layer）for roller transportation of 2 sections and
the gears of them can be transported with different speed, in another word：This dryer
is able to simultaneously deal with 2 kinds of veneer with different size.（the veneer
with different size has change by different drying time for needs）
3. The natural cooling space is 1M in length between cooling part and heating part and
the central part of hot wind part, each cooling division sent cooling air into the wind
conduit from outside of the room to rapidly cool the veneer, and discharge air into
outside of the room by heat exchanged at any time.
