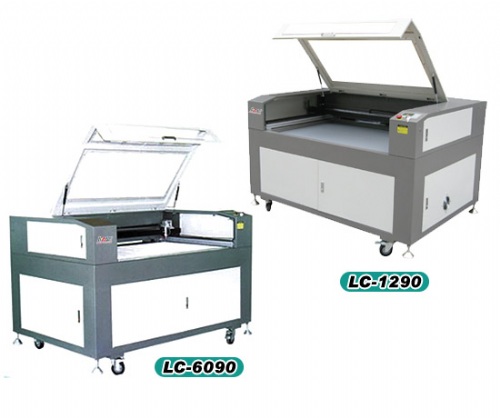

LIN KE Laser Cutting Machine
Model: LC-1290.LC-6090
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Laser Cutting & Engraving Machines
Characteristics
THE FEATURES :
☉ Mechanical system is a unique decelerating design to make stable and smooth movement.
☉ The edge of cutting is smooth and without sawtooth .
☉ Continuous curve calculating software makes cutting speed more faster.
Specifications
SPECIFICATION
ITEM: LC-1290 LC-6090
Laser Type: Sealed CO2 Laser tube
Laser Power :80W/100W
Engraving Area :1200X900mm
900X600mm
Machine Size :1720X1210X1070mm 1360X1010X1070mm
Engraving Speed: 0-24,000mm/min
Reset Position Accuracy: ±0.1mm
Voltage :AC220V ±10,50-60Hz
Gross Power :＜1,000W
Operating Temperature :0-45℃
Operating Humidity :5-95％
Minimun Shaping Size : English charactor 1X1mm
Fesible Graphic Format :BMP / PLT / DST / DXF / AI
Driving System :Stepper
Cooling System :Water-Cooling & Protection system
Auxiliary Equipments :Exhaust fan and Air-Exhaust pipe
Controlling software :DSP controlling system
Compatible software :CorelDraw / AutoCAD / Photoshop
Machine Net Weight :280KG 220KG
Applicable Materials:
☉ Non-metal Material, such as leather, fabric, textile, rubber, wood, bamboo, acrylic, plastic, organic glass, ceramic, marble, jade, crystal, shell and so on.
☉ Variety of Metal-Plated Material
Applicable Industries:
Leather , Advertisement, Arts and Crafts, Wood & Bamboo, Garments, Computerized embroidery and clipping, Electronic instument board, Packaging and Paper Industry.
