WELDING MACHINE

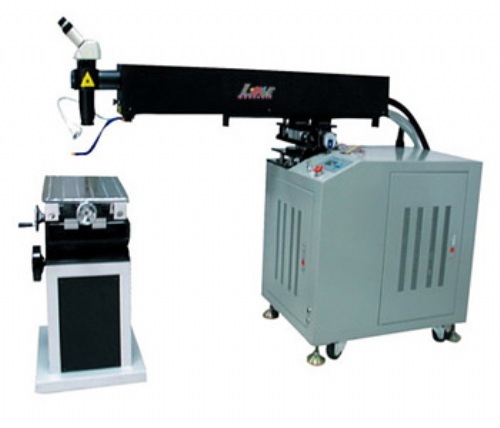

Model: Laser Deposit Welding Machine LKDWY150
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Laser Cutting & Engraving Machines
Characteristics
Laser deposit welding system (laser mold-repairing machine) is the product specially develop for the mold-using industries. It is mainly used for repairing precise mold and the mold can be fully used after being repaired. So it can greatly save producting cost and enhance working efficiency. For the high heat energy of laser and focalized welding technology, these laser deposit welding machine can effectively carry out welding and repairing work for any micro parts, also can compensate the deficiency of repairing fine surfaces for traditional argon arc technology.
The available materials is such as cold-worked high alloy steel, hot forged high alloy steel, nickel tool steel, high class steel, copper alloy, beryllium alloy and high toughness aluminum alloy etc. metal materials, covering such industries as mobile phones, digital products and automobile and motorcycle fittings etc. mold manufacturing and forming industries.
Specifications
Specifications
Maximum laser power: 180W
Laser wavelength :1064nm
Maximum single pulse energy: 110J
Laser welding depth :0.1 - 3.5mm
Pulse width :0.3 - 20ms
Double hit laser welding frequency: 0.5 - 40Hz
Adjustable range of facular dimensions: 0.2-2mm
Laser welding wire :Φ0.2-Φ 0.8 mm
Machine power :≦11KW
Electric requirements :220V（380V）±10%/50Hz/40A
Standard work table :Three-dimensional, upward and downward electric
Aiming locating Microscope
Upper and loser travel of laser: 300mm
Axial rotation of laser :360 degree
