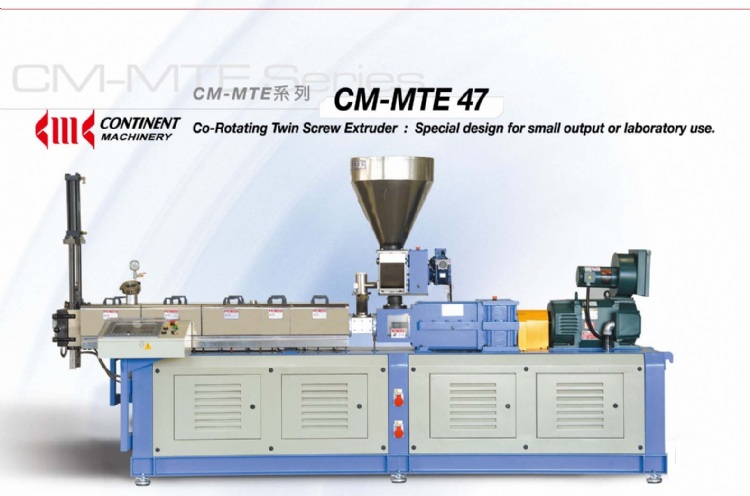

CM-MTECo-Rotating Segmented Type Twin Screw Extruder+CM-UWP Under Water Pelletizer
Model: CM-MTECo-Rotating Segmented Type Twin Screw Extrud
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Colorants, Pigments and Dyes
Characteristics
Modular Design:
Screw element and barrel is modular system,geometry,high performance of screw configuration,easy arrange and replace screw elements.
Strong kneading,mixing(left/right hand), and conveying element, which use in different character resins.
Advantages:
It is suitable used for compounding and high concentrate color masterbatch.
Automatic Control System:
Modify recording
Production recording
Control panel
Specifications
Description
Model |
MTE 47 |
XʰOMotor (HP) |
75 – 100 |
FtMotor]RPM^ |
1750 |
쪽|Screw Diam.(mm) |
ψ47 |
ն`Channel Depth |
8 |
| L/D(mm) |
32-48 |
t Screw RPM |
600 |
O Torque (N-M) |
800 – 1100 |
ն Screw Material |
ҦX |
[ϼ Heating Zones |
8 – 12 |
Not Cooling Zones |
oN/N Water/Oil |
ƺާ Barrel Material |
X/SX Special Alloy |
ưt Resin Output kg/hr
Organic masterbatch PP.PS.LDPE.EVA … |
50 - 130
|
Inorganic masterbatch ABS.PP.PA.POM.PBT |
80 – 220 |
Polymer alloy ABS.PC.PA.PE |
50 – 150 |
Enforcing engineering resins PP.PA.PBT.POM |
100 –190 |
Engineering resin ABS.PBT.PP.PA.HDPE |
100 –190 |
Polymer alloy ABS.PA.PP.PBT.POM |
100 –190 |
Holt melt SBS |
80 –230 |
