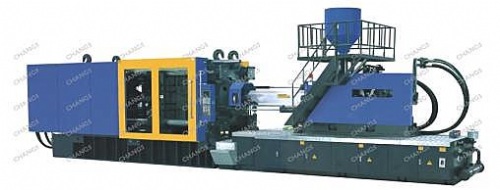

Injection Machine for PET preform
Model: HMW-3980
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Injection Molding Machines for PET Preforms
Specifications
MODEL HMW-3980
Screw Diameter 80
Screw L/D Ratio 21
Shot Size(theoretical) 1689 cm3
Injection weight 1788g
Injection rate 446g/s
Plasticizing capacity 70g/d
Injection pressure 152mpa
Screw Speed 0-165rpm
Clamp tonnage 3980kn
Toggle stroke 700mm
Space between tie bars 720x720mm
Max. Mould height 800mm
Min. Mould height 280mm
Ejector stroke 160mm
Ejector tonnage 110kn
Ejector number 13 Pcs
Max. pump pressure 16mpa
Pump motor power 37kw
Heater power 24.8kw
Machine dimension 7.1*1.9*2.5m
Machine weight 15.7t
Hopper capacity 50kg
Oil tank capacity 750L
