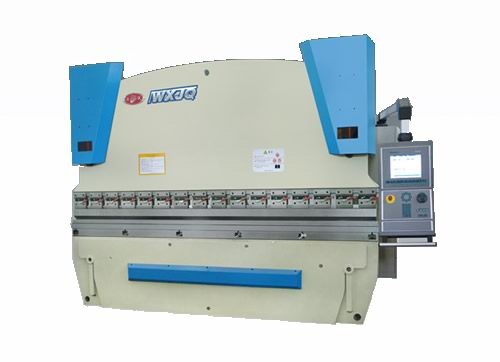

CNC hydraulic press brake

Model: WE67K

Category: Machine Tools / Metal Forming Machine Tools / Bending Machines

Online Inquiry

Characteristics

‧ European CNC hydraulic press brake controller with complete bending computations and tool library
‧ Ideal for multi-bending of complex sheet bending forms, as well as for volume production which require constant repeatability
‧ CNC Hydraulic Press Brake Bend accuracy and repeatability much higher than a conventional press brake
‧ Fully synchronised Y1-Y2 axes to ± 0.01mm via proportional valves and precision linear scales
‧ Very fast AC servo backgauge (X) system controlled by CNC
‧ High stroke and daylight values
‧ Two front arms with front gauge, can slid on T slot
‧ Side and rear safety gates (electrically interlocked and/or light or laser guarded)
‧ Compactly-wired PLC electrics in ventilated cabinet
‧ Ram travel fully supported in low friction slideways
‧ Automatic hydraulic press brake working table crowning system controled by CNC
‧ European hydraulic system
‧ Oil tank level / temperature indicator

Specifications

Machine Parameter :

MODEL	Nominal Pressure（kN）	Length of Table（mm）	Distance between Housings（mm）	Throat Depth（mm）	Strokes(mm)/ Strokes（/min）	Open Height（mm）	Main Motor（kW）
WE67K-63/2500	630	2500	2050	250	200/≥10	460	7.5
WE67K-80/2500	800	2500	2050	250	200/≥10	460	75
WE67K-100/3200	1000	3200	2650	320	200/≥8	475	7.5
WE67K-100/3200	1000	3200	2650	320	200/≥8	475	7.5
WE67K-125/4000	1250	4000	3100	430	200/≥8	490	7.5
WE67K-125/4000	1250	4000	3100	430	200/≥8	475	7.5
WE67K-160/4000	1600	4000	3100	320	200/≥6	540	11
WE67K-200/3200	2000	3200	2650	320	200/≥5	560	15
WE67K-200/4000	2000	4000	3100	320	200/≥5	560	15
WE67K-200/5000	2000	5000	4000	320	200/≥25	560	15
WE67K-200/6000	2000	6000	4800	320	200/≥5	560	15
WE67K-250/3200	2500	3200	2650	400	200/≥3	560	15
WE67K-250/4000	2500	4000	3100	400	200/≥3	560	15
WE67K-250/5000	2500	5000	4000	400	200/≥3	560	15
WE67K-250/6000	2500	6000	4800	400	200/≥3	560	15
WE67K-300/3200	3000	3200	2650	400	200/≥3	560	22
WE67K-300/4000	3000	4000	3100	400	200/≥3	560	22
WE67K-300/5000	3000	5000	4000	400	200/≥3	560	22
WE67K-300/6000	3000	6000	4800	400	200/≥3	560	22
WE67K-400/3200	4000	3200	2650	500	320/≥2.5	700	30
WE67K-400/4000	4000	4000	3100	500	320/≥2.5	700	30
WE67K-400/5000	4000	5000	4000	500	320/≥2.5	700	30
WE67K-400/6000	4000	6000	4800	500	320/≥2.5	700	30
WE67K-500/4000	5000	4000	3100	600	320/≥2.5	800	45
WE67K-500/5000	5000	5000	4000	600	320/≥2.5	800	45
WE67K-500/6000	5000	6000	4800	600	320/≥2.5	800	45
WE67K-600/6000	6000	6000	4800	1000	320/≥2.5	1000	45
WE67K-800/6000	8000	6000	4800	1250	350/≥2	1300	55
WE67K-1000/6000	10000	6000	4800	1400	400/≥1.5	1400	2*45
WE67K-1600/6000	16000	6000	4800	1100	450/≥1.5	1250	2*55
WE67K-1600/9000	16000	9000	6500	1100	450/≥1.5	1250	2*55
