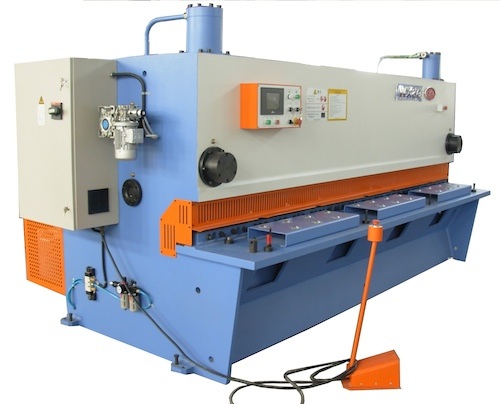

CNC Hydraulic Guillotine Shear
Model: QC11K
Category: Machine Tools / Metal Forming Machine Tools / Shearing Machines
Characteristics
1. Hydraulic Guillotine shear Adopting rolling guide way with three-point support, cutting accuracy could be maintained well,
2. Hydraulic guillotine rectangular blades has four edges to extend service life;
3. The hydraulic shearing machine cutting angle can be adjusted to reduce the amount of deformation of the sheet.
4. Hydraulic guillotine Shear blade gap could be adjusted accurately and rapidly; the cutting machine top blade stroke could be adjusted stepless to improve cutting speed.
5. Hydraulic shearing machine variety of back gauge and blade gaps which controlled by CNC system.
6. For different capacity hydraulic guillotine shear, we can supply shadow line facility with fluorescent lighting; Work table with ball transfers
7.Hydraulic shear is with movable foot switch , Emergency stop buttons
8. For hydraulic shearing machine safety, machine is equipped with front finger guard , rear guard and side throat guards
9. All series hydraulic guillotine has hydraulic hold down system
10. Hydraulic shearing machine hydraulic overload protection
Specifications
|
MODEL |
Shear Size (T*W)(mm） |
Shear Angle |
Strokes (min-1) |
Back Gauge Range(mm) |
Main Motor (kW) |
Weight（kg） |
|
QC11K-6*2500 |
6*2500 |
0.5°-2° |
12 |
20-600 |
7.5 |
5050 |
|
QC11K-6*3200 |
6*3200 |
0.5°-2° |
9 |
20-600 |
7.5 |
6150 |
|
QC11K-6*4000 |
6*4000 |
0.5°-2° |
10 |
20-600 |
11 |
8100 |
|
QC11K-8*2500 |
8*2500 |
0.5°-2° |
11 |
20-600 |
11 |
5650 |
|
QC11K-8*3200 |
8*3200 |
0.5°-2° |
8 |
20-600 |
11 |
6850 |
|
QC11K-8*4000 |
8*4000 |
0.5°-2° |
10 |
20-600 |
15 |
9300 |
|
QC11K-12*2500 |
12*2500 |
0.5°-2.5° |
8 |
20-800 |
15 |
8000 |
|
QC11K-12*3200 |
12*3200 |
0.5°-2.5° |
8 |
20-800 |
18.5 |
9500 |
|
QC11K-12*4000 |
12*4000 |
0.5°-2.5° |
8 |
20-800 |
22 |
14000 |
|
QC11K-16*2500 |
16*2500 |
0.5°-3° |
7 |
20-800 |
22 |
10800 |
|
QC11K-16*3200 |
16*3200 |
0.5°-2.5° |
7 |
20-800 |
22 |
13150 |
|
QC11K-20*3200 |
20*2500 |
0.5°-2.5° |
6 |
20-1000 |
30 |
18300 |
|
QC11K-20*2500 |
20*3200 |
0.5°-3° |
6 |
20-1000 |
30 |
15100 |
|
QC11K-25*2500 |
25*2500 |
0.5°-3° |
5 |
20-1000 |
45 |
20600 |
|
QC11K-25*3200 |
25*3200 |
0.5°-3° |
4 |
20-1000 |
45 |
24000 |
|
QC11K-8*6000 |
8*6000 |
0.5°-2° |
7 |
20-1000 |
22 |
23850 |
|
QC11K-10*6000 |
10*6000 |
0.5°-2° |
7 |
20-1000 |
22 |
26000 |
|
QC11K-10*7000 |
10*7000 |
0.5°-2° |
7 |
20-800 |
37 |
38645 |
|
QC11K-10*8000 |
10*8000 |
0.5°-2° |
7 |
20-1000 |
45 |
49000 |
|
QC11K-12*6000 |
12*6000 |
0.5°-2° |
7 |
20-1000 |
30 |
29500 |
|
QC11K-16*6000 |
16*6000 |
0.5°-2.5° |
5 |
20-1000 |
37 |
36000 |
|
QC11K-25*4000 |
25*4000 |
0.5°-3° |
4 |
20-1000 |
45 |
31000 |
|
QC11K-25*6000 |
25*6000 |
0.5°-3° |
5 |
20-1000 |
2*37 |
55200 |
|
QC11K-30*2500 |
30*2500 |
0.5°-3.5° |
4 |
20-1000 |
55 |
27000 |
|
QC11K-13*8000 |
13*8000 |
0.5°-2° |
7 |
20-1000 |
75 |
56500 |
