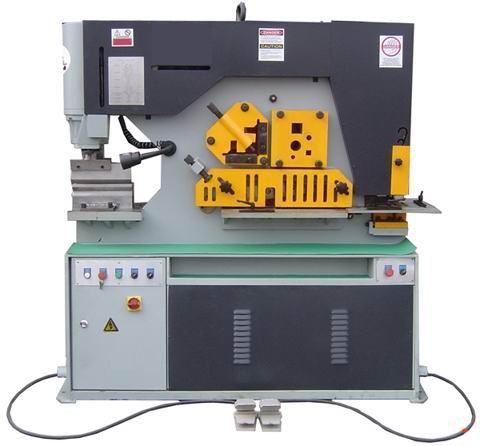

Multi-function Hydraulic Ironworker
Model: Q35Y
Category: Machine Tools / Metal Forming Machine Tools / Sheet Metal Forming Machines
Characteristics
Multi-functions:
1.Punching: the machine can punch various holes on steel plate, angle steel, C-chennal, H-beam, round tube, square tube and so on: round hole, square hole, Elliptical hole, round chamfer,
2.Bending: the punching station can be installed with press brake tool to do short length bending. It’s very conveneint for angle steel tower fabrication.
3.Shearing: flat steel plate, square bar, round bar, angle steel, C-Chennal, H beam;
4.Notching: can cut 90 degree corner for steel plate, angle steel. The function is very widely used in electric tower fabrication or steel cabinet making.
Specifications
|
Hydraulic ironworker Parameters |
Q35Y-16 |
Q35Y-20 |
Q35Y-25 |
|
|
punching pressure(ton) |
55 |
90 |
110 |
|
|
max.shearing thickness of steel plates(mm) |
16 |
20 |
25 |
|
|
strength of steel plates(N/mm2) |
≤450 |
≤450 |
≤450 |
|
|
angle of shear |
7° |
8° |
8° |
|
|
shearing sizes of one stroke (W×H)(mm) |
16×250 |
10×480 |
16×600 |
|
|
8×400 |
20×330 |
25×330 |
||
|
ram stroke(mm) |
80 |
80 |
80 |
|
|
number of stroke(times/min) |
8 |
8 |
6 |
|
|
depth of throat(mm) |
300 |
355 |
400 |
|
|
punching thickness(mm) |
16 |
20 |
25 |
|
|
max.diameter of punching(mm) |
25 |
30 |
35 |
|
|
main motor power(KW) |
4 |
5.5 |
7.5 |
|
|
overall dimensions（L×W×H）mm |
1640×730× 1770 |
1860×800×1900 |
2355×960×2090 |
|
|
N.W(kg) |
1600 |
2000 |
4800 |
|
|
Types of profiled steel for shearing |
||||
|
type |
size(mm) |
|||
|
round steel |
45 |
50 |
60 |
|
|
Square bar |
40x40 |
50x50 |
50x50 |
|
|
90°shearing of equal-angle bar |
125x125x12 |
140x140x12 |
160x160x14 |
|
|
45°shearing of equal-angle bar |
70x70x8 |
50x50x5 |
70x70x7 |
|
|
90°shearing of T-bar |
120x120x12 |
140x140x12 |
160x160x14 |
|
|
I beam steel |
126 x 74 x 5 |
140x80x6 |
200x102x9 |
|
