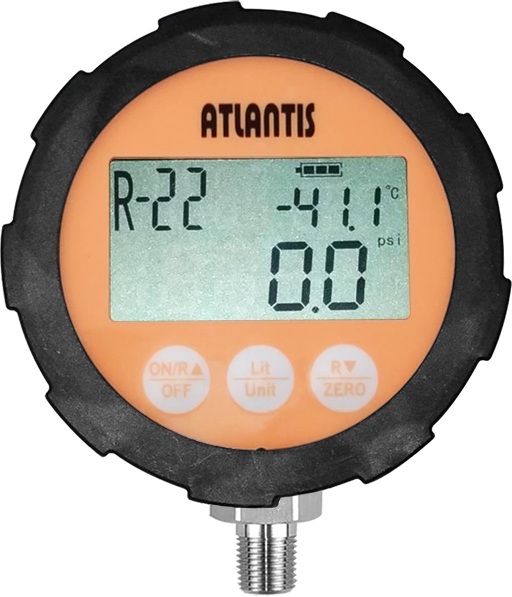

Digital Refrigeration Gauge
Model: FDPG-2.5
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Air-conditioning Equipment
Characteristics
Features
¡½ Measurable pressure range -14.5~800psi
¡½ Switchable pressure units
¡½ 21 types of applicable refrigerants
¡½ 4.5 digits LCD screen with backlight function, fast refresh rate
¡½ One-click return to zero function
¡½ Power saving design - 10 mins auto power off
¡½ Battery life indicator on screen
Specifications
Main Specifications
¡¿Size
2.5”
¡¿Pressure connection
1/8”NPT
¡¿Pressure range
-14.5 ~ 800 psi
¡¿Applicable refrigerants
21 types
R22, R23, R32, R124, R134A, R290, R404A, R407C, R407F, R408A, R410A, R417A, R427A, R444B, R448A, R449A, R452A, R507, R600A, R1234YF, R1270
¡¿Applicable fluid
Liquid and gas that compatible with connection’s material
¡¿Operating temperature
-10 to 60¢J
¡¿Operating humidity
35~85% RH
Other Specifications
¡¿Housing material
ABS
¡¿Screen display
4.5 digits LCD with backlight
Switchable pressure unit:
psi / bar / MPa / kg/cm2 / kPa
Temperature unit: ¢J / ¢K
¡¿Refresh rate
Max. 1.2 sec/times
¡¿Pressure resolution
0.1psi / 0.01bar / 1kPa / 0.001MPa / 0.01kg/cm2
¡¿Temperature resolution
0.1¢J(@<100¢J)¡þ1¢J(@¡Ù100¢J)
0.1¢K(@<100¢K)¡þ1¢K(@¡Ù100¢K)
¡¿Accuracy
±0.5%F.S. (@22~28¢J)
¡¿Power supply
CR123A battery x1
(3.0V, 1400mAh)
Battery life:
About 2 years for continuous operation without backlight
¡¿Burst pressure
3xF.S.
