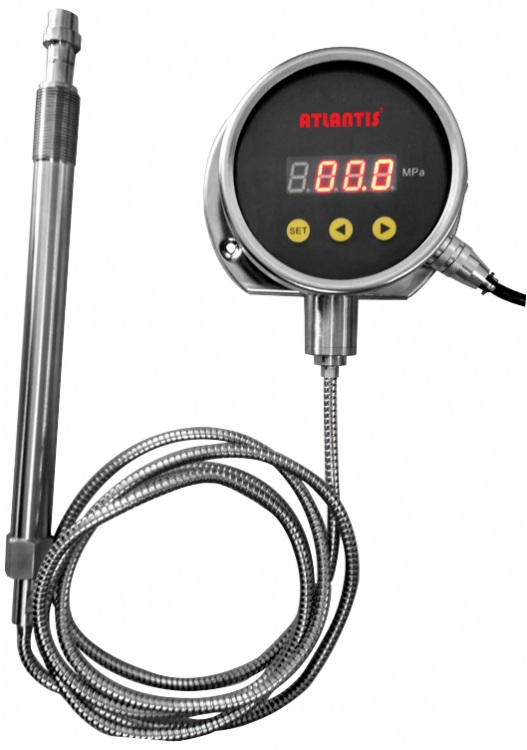

高溫熔體隔膜數位壓力錶
Model: DPG-DSHR
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Pressure Gauges
Characteristics
特色
■ 四位數高亮度LED顯示
■ 4-20mA類比訊號輸出
■ 最高量測介質溫度可達350℃
■ 壓力量測範圍最高1000bar
■ 安裝容易,穩定性高,使用壽命長
■ 精度0.5%F.S.
■ 測棒與毛細管長度可依需求訂製
Specifications
主要規格
▼錶徑
4”(100mm)
▼壓力接續部
1/2-20UNF, M14x1.5
M18x1.5, M22×1.5
其他螺紋規格需訂製
▼電器接頭
mini 5-pin/mini 6-pin
▼壓力範圍
0…5 to 100MPa
▼測棒
長度: 150mm/230mm
其他長度可訂製
▼毛細管長度
長度: 4.6M/7.6M
其他長度可訂製
▼適用介質
與不鏽鋼材質兼容的氣體或液體
▼介質溫度
最高350℃
其他規格
▼外殼材質
不鏽鋼
▼螢幕顯示
4位數LED顯示
▼輸出訊號
4-20mA
▼電源供應
24VDC/220VAC
▼感測元件
膜片
材質: 15-5PH不鏽鋼
▼精度
±0.5% F.S.
▼過壓使用
1.5*F.S.
