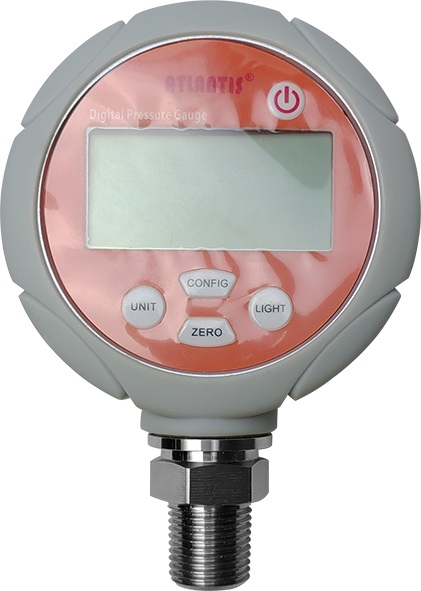

Digital Precision Pressure Gauge (General Type)
Model: AT803
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Pressure Gauges
Characteristics
Features
¡½ OEM service
¡½ High accuracy - up to 0.02%
¡½ 5-digit LCD display
¡½ Large display screen 58 x 29 mm
Specifications
Main Specifications
¡¿Diameter
3.5”(95 mm)
Depth: 41mm
¡¿Pressure connection
Material: SS 316
Laser beam welding
Size: 1/2”
Type: BSPT, NPT, PF
¡¿Pressure range
Min.: 0.16 bar
Max.: 2500 bar
¡¿Applicable fluid
Liquid and gas that compatible with SS 316 / Pure,
non-corrosive gas
¡¿Ambient temperature
-20°C to +70°C
¡¿Storage temperature
-40°C to +85°C
¡¿Fluid temperature
-10°C to +50°C
¡¿Ambient humidity
95% R.H.
¡¿Atmospheric pressure
860…1060 mbar
¡¿Temperature error
Standard temp.: 20¢J
max. error: ±0.1% F.S
(0~50¢J)
¡¿Protection level
IP54
¡¿Spare parts
3.6V lithium battery /
Thread adaptors
Other Specifications
¡¿Ring
Aluminum die casting
¡¿Back housing
Aluminum die casting
¡¿Display
5-digit LCD (0.1%)
6-digit LCD
Blue backlight LED
¡¿Refresh rate
3 times/sec ~ 10 secs/times
Other refresh rates are available, please specify your request
¡¿Screen size
58 x 29 mm
¡¿Pressure unit
mmH2O, mmHg, inH2O, Pa, kPa, MPa, psi, bar, mbar
¡¿Resolution
0.0001
¡¿Measuring elements
High-tech silicon wafer
SS 316L diaphragm
¡¿Communication port
RS232
¡¿Accuracy
0.1% / 0.2%
0…100 kPa
0.1% / 0.2% / 0.05% / 0.02%
0…400kPa to 2500 bar
¡¿Operating pressure
Please refer to pressure range and accuracy table
¡¿Compensated temperature
0°C to 50°C
¡¿Power supply
3.6V lithium battery
Input: DC 9V (2A)
¡¿Battery life
Please refer to battery life table
¡¿Weight
450g
