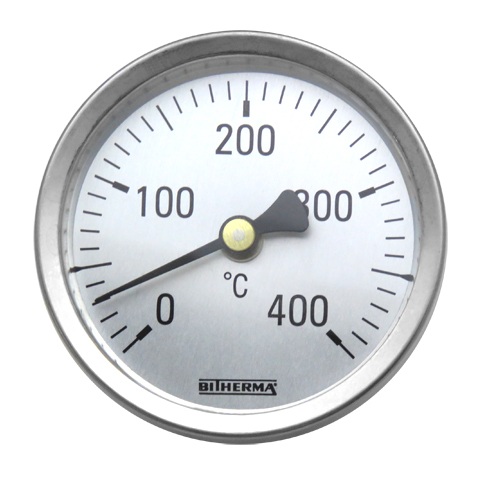

Bimetal Thermometer (Bar Magnets Type)
Model: BT-BM
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Thermometers
Characteristics
Features
¡½ Imported from German BITHERMA brand
¡½ All stainless steel material are available
¡½ Back mount with bar magnets
¡½ Number of bar magnets are flexible
Specifications
Main Specifications
¡¿Size
2.5”, 3”
(Option: 2”, 4”)
¡¿Mount type
Back mount with bar magnets
¡¿Window
Glass / Safety glass
(only available for size > 2.5”)
With O-ring sealed
¡¿Temperature range
Min.: -50°C
Max.: +600°C
For detail please refer to temperature range table
¡¿Application
Attachable surface for
bar magnets
¡¿Protection level
IP 54
Other Specifications
¡¿Housing
Materials are differed from size specification
Please refer to material table
¡¿Bezel
Materials are differed from size specification
Please refer to material table
¡¿Back housing
Materials are differed from size specification
Please refer to material table
With bar magnets
¡¿Pointer
Aluminum with black enamel
Adjustable pointer
¡¿Dial face
Aluminum with white enamel
All black scale
¡¿Measuring elements
Bi-metal spiral spring
¡¿Temperature accuracy
2.5%
¡¿Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale
