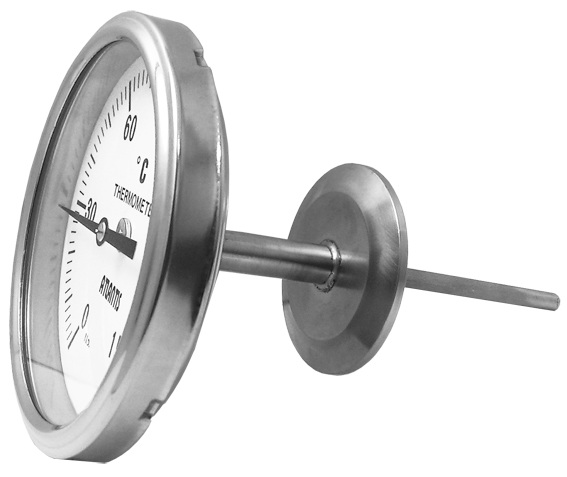

Specifications

Main Specifications
▼Size
2”, 2.5”, 3”, 4”,5”,6”
▼Installation type
Back mount
▼Window
PC / Tempered glass
▼Process connection
Material: SS 304／SS 316
Size:
Tri-Clamp 0.75”(O24.89mm)
Tri-Clamp 1”(O50.8mm)
Tri-Clamp 1.5”(O50.8mm)
Tri-Clamp 2”(O63.5mm)
Tri-Clamp 2.5”(O76.2mm)
Tri-Clamp 3”(O91.44mm)
▼Stem
Material: SS 304／SS 316
Outer diameter: 6.35mm (Others available upon request)
Length: Min. 4” Max. 80”
(Include ferrule length)
<Thermowell can be customized in accordance with stem length>
▼Liquid-filling (Option)
Glycerin／Silicon oil／Vegetable oil
▼Temperature range
Min. -50°C
Max. +600°C
▼Applicable fluid
Liquid and gas that compatible with connection material
▼Protection level
IP54 (standard) /
IP65 (option)

Other Specifications
▼Ring
Stainless steel
Crimp
▼Case
SS 304／SS 316
External adjustable screw
(Hexagonal flathead screw)
▼Pointer
Aluminum with black enamel
▼Dial face
Red and black scale
Blue and black scale
▼Measuring elements
Bimetal
Temperature sensing area:
Last 50mm of stem
▼Temperature accuracy
1.5% (standard) / 1% (option)
▼Operating temperature
Stabilization: 3/4* F.S.
Short-time: 1* F.S.
