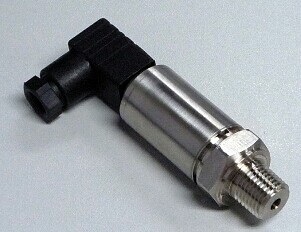

Compact Pressure Transmitter
Model: HPT-6
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
Features:
Compact,Universal structure;
Optional output signal.(Voltage/Current)
Optional core.(The ceramic core and The diffusion silcon core)
Optional pressure connection.
Widely used in Automotion equipment for measurement.
Specifications
Applications:
The oil industry, chemical industry, Electric power.
Hydrautlic pressure system, pneumatic system.
Energy and water treatment system.
Automation equipment.
Industrial process control.
Performance parameters
Pressure range : -0.1~250MPa
Pressure mode : Gauge Pressure、Absolute Pressure
Output signal : 4~20mA , 0~10V or Optional
Accuracy(%FS) : 0.1 0.25 0.5
Nonlinearity(%FS) : ≤0.1 ≤0.25 ≤0.5
Hysteresis(%FS) : ≤0.1 ≤0.25 ≤0.5
Repeatability(%FS): ≤0.1 ≤0.25 ≤0.5
Zero drift (%FS/℃): ≤0.02
Temperature drift(%FS)≤0.02
Stability (%FS/Year): ≤0.25
Working voltage(V) : 12~36V DC(Standard：24V)
Working temperature(℃): -20~85℃
Overload capacity(%): 300
Life span: more than 9 million times pressure cycle
Load resistance (Ω): ≤750
Response time (ms): ≤1
Measurement of medium: Mediums compatible with 316L
Diaphragm material: 316L or the ceramic diaphragm
Housing material : 1Cr18Ni9Ti or aluminum alloy
Pressure interface: M20*1.5,G1/2,G1/4,1/4NPT or others
Protection grade: IP65
Weight : 80g
