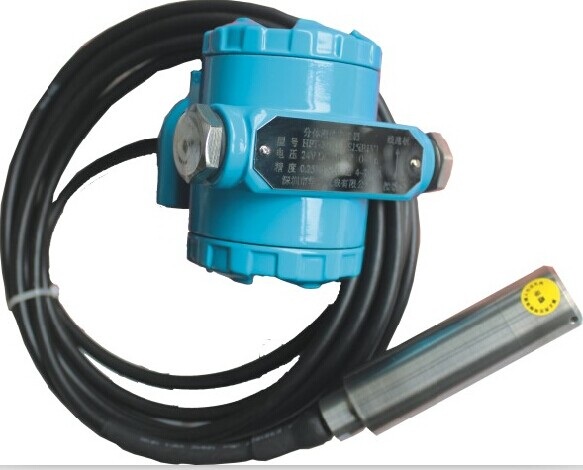

Split immersion liquid level transmitter
Model: HPT-34
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
Features:
Wide measuring range：0∼1∼500m;
High precision;
Good stability;
Wide working temperature：-20∼85℃;
Strong corrosion resistance;
Guide gas cable transmission;
Convenient adjustment of zero point and the full range.
Specifications
Applications
The oil industry, chemical industry,Electric power.
Hydraulic pressure system,Pneumatic system;
Energy and Water treatment system.
Automation equipment;
Industrial process control.
Performance parameters
Range(m): 0~500
Pressure mode: Gauge pressure、absolute pressure
Output signal: 4∼20mA or others
Accuracy(%FS): ≤0.1 ≤0.25 ≤0.5
Nonlinearity(%FS: ≤0.1 ≤0.25 ≤0.5
Hysteresis (%FS):≤0.1 ≤0.25 ≤0.5
Repeatability(%FS): ≤0.1 ≤0.25 ≤0.5
Zero drift(%FS/℃): ≤0.02
Temperature drift(%FS):≤0.02
Stability(%FS/Year): ≤0.25
Working voltage(V):12~36V DC(Standard:24V)
Working temperature(℃):-20~85℃
Overload capacity(%):>200
Life span:more than 9 million times pressure cycle
Load resistance(Ω):750
Response time (ms):≤1
Measurement of medium:Mediums compatible with 316L and guide gas cable
Diaphragm material:316L or The ceramic diaphragm
Housing material:cast aluminum
Protection grade:IP68
Weight: 1100g
