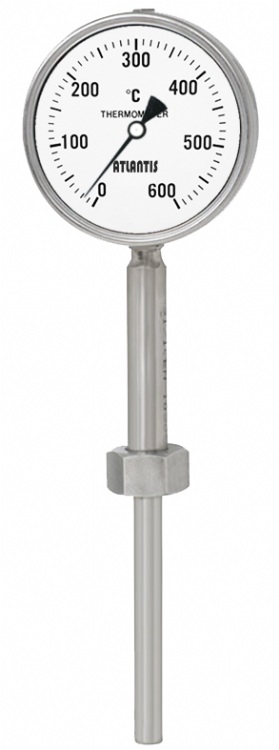

Gas-actuated Thermometer (Marine Type)
Model: ITI-M
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Thermometers
Characteristics
Features
¡½ OEM service
¡½ All stainless steel design
¡½ Silicone oil has been filled to ensure shockproof performance
¡½ Adjustable male thread design with a stop plate
¡½ Gas-actuated measurement ensuring the fastest reaction to temperature change
¡½ Ship specialized industrial thermometer
Specifications
Main Specifications
¡¿Size
3”, 4”,5”,6”
¡¿Window
Glass
¡¿Process connection
Thread type: M27x2 Adjustable male thread, G3/4”, 3/4”NPT
Material: SS304
Other specifications (include female thread) are available, please specify
¡¿Extension neck
Outer diameter: 16mm (std.)
Length 75mm (Std.)
Other specifications are available, please specify
¡¿Stem
Material: SS304
Length:
106mm (std.) 60mm (min.)
Outer diameter:
8 / 9.5 / 12mm
Other specifications are available, please specify
¡¿Temperature range
Min.: -50°C
Max.: +650°C
¡¿Applicable fluid
Liquid and gas that compatible with SS304
¡¿Oil-filling
Silicone oil
¡¿Protection level
IP 65
¡¿Temperature error
Standard: calibrated temp.
Every ±4 °C max. error: 0.25%
Other Specifications
¡¿Ring
Stainless steel
¡¿Case
SS304
¡¿Pointer
Aluminum with black enamel
¡¿Dial face
Red and black scale on
whiteboard
¡¿Measuring elements
Gas-actuated
Gas-pressure inert gas filling
¡¿Accuracy
±1%F.S.
¡¿Operating temperature
Stability: 3/4*F.S.
Short-time: 1*F.S.
