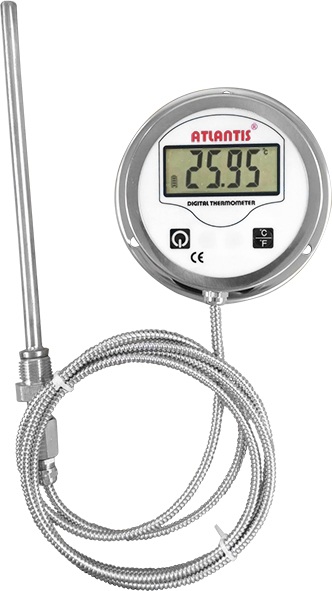

Remote Reading Digital Thermometer
Model: DTG-FT
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Thermometers
Characteristics
Features
¡½ OEM service
¡½ Accuracy 1% (-20 to 80¢J)
¡½ All stainless steel design
¡½ Remote reading with capillary (maximum capillary length 20 meter)
¡½ Other stem/capillary length, stem diameter, connection specification and material are available upon request
¡½ Install a thermowell (option)
Specifications
Main Specifications
¡¿Size
4”
¡¿Window
PC
Sealing with silicone rubber
¡¿Process connection
Material: SS 304
1/2”NPT
Welded connection
Adjustable single male thread
Other specification available upon request
¡¿Stem
Material: SS 304
Outer diameter 12mm
Length: 6”(standard)
(Other diameter and length available upon request)
¡¿Capillary
Material: SS 304
Outer diameter 6.35mm
Length: 3 meter
(Maximum length 20 meter)
¡¿Temperature range
Min.: -50°C
Max.: +125°C
¡¿Applicable fluid
Liquid and gas that compatible with SS 304
¡¿Ambient temperature
-20°C~+50°C
¡¿Protection level
IP 54
Other Specifications
¡¿Ring
Stainless steel
Screw fixed
¡¿Back housing
SS 304
ABS
¡¿Screen display
4-digit LCD
Resolution - 0.01
Power supply:
Solar energy / battery
¡¿Refresh rate
10 secs/times
Option:
5secs/times, 3secs/times
¡¿Measuring elements
NTC
¡¿Accuracy
-20~80°C (+/- 1°C)
Other (+/-2°C)
