Material Testing Machine YUELIAN TESTING MACHINES
Model: YL-1138Material Testing Machine
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Industrial Robots & Accessories
Characteristics

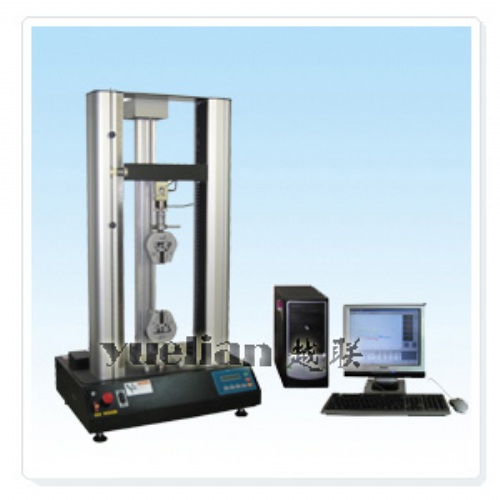

YL-1138B Material Testing Machine
CNS 2276
Material testing machines can analysis the whole testing result including elongation, stress, strain, break value and average value. It can also fit to different specimen shape or be required to destroy the specimen and record the entire testing process and analysis the physical features of the specimen like tension force, bending strength, wear-resisting, impact, torque force, abrasion, fatigue, hardness, peeling force, viscosity...etc. We also supply the specimen maker equipment like pneumatic specimen press, hardness specimen cutting device, electrical forming machine. These equipment can make the standard specimen to get precise result during test.
Specifications
This is a new tabletop Material Testing Machine which applied by latest design and producing skill to have strong structure and lightweight. Undoubtedly we still keep the advantage for testing precision, simply operation, expand strong. It’s the best choice for material testing machine. We have a series B1 type: 503B1/505B1/508B1/513B1. The specification and function of them are the same expect external different.
Specs Description
capacity 10KN (1,000kgf)
Force Resolution 1/10000
Stroke 700mm
Stroke Resolution 0.005mm
Speed 1-1000mm/min
Space 350mm
Dimension 72×51×132cm
Weight 115kg
Power 220VAC
