Specifications



Abstract

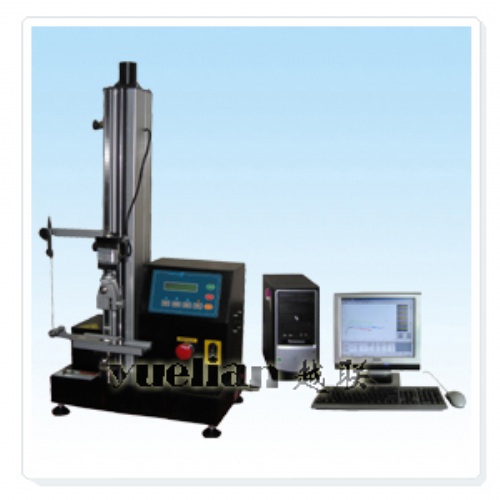

This machine is mainly designed for small capacity test. Less dimension and weight are the specialities, however it still keeps the function for materials testing. This is a best choice especially for small capacity test as peeling test, friction test and the tests for small parts.

Specification

Capacity : 1kN (100kgf).

Structure : Pair of ball screw to increased life, precision.

Stroke : 400mm (not include grip).

Stroke : 100mm.

Speed : 6~600mm/min, set by user.

Dimension : 40 x 30 x 60(H) cm.

Weight: 27kg.

Power : Single-phase, 200~255V, 5A.

Digital Display

LCD backlight, show the load and displacement at the same time.

Chinese and English changeable.

Can remember 50 groups of result data.

Can calculate tensile, elongation etc.

Support dot-matrix printer (type restricted).

Software function (choose)

Offer the tensile test, compression test, flexure test, peeling test, etc.

The unit is divided to length, load, stress, time, etc. The SI or British unit system can be choosing.

There is load, displacement protection.

The elasticity of the curve is established, multi-curves can be compared at the same time.

More than of one hundred kinds of function can choose, include tensile, peeling, tear, load modulus, displacement modulus, and can increased according with need.

The data table can set the column item. The item name also can be rename.

The test setting conditions can be saved or open.

Statistical analysis functions.

Computer specification (choose)

CPU2.4GHz, 256M RAM.

17”TFT (1024 x 768), Keyboard, Mouse, CD-ROM, 60GByte hard disk.

System : Win XP.
