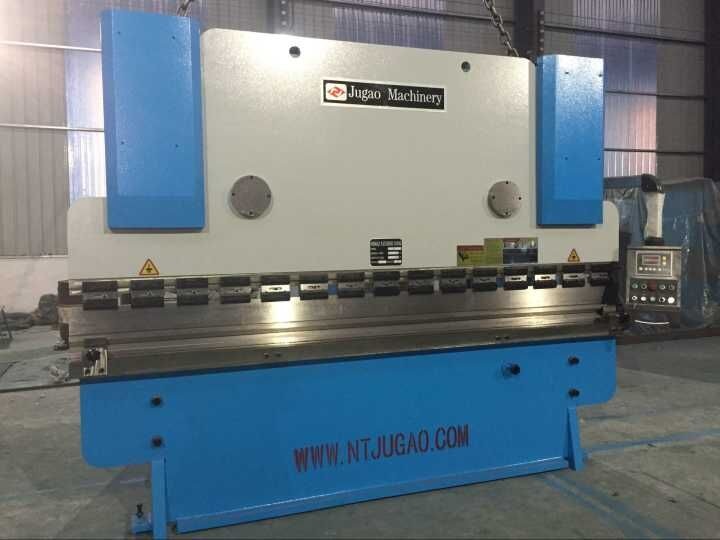

hydraulic press brake,hydraulic plate bending machine

Model: WC67Y

Category: Machine Tools / Metal Forming Machine Tools / Plate Rolling Machines

Online Inquiry

Characteristics

Keywords:bending sheet machine,cnc hydraulic press brake,cnc hydraulic press brake,hydraulic plate bending machinery,hydraulic press brake,hydraulic press brake machine,hydraulic sheet bending machine,press brake machine,press brake price,sheet bending machine,steel plate bending machine,steel press machine.

Features
1. Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke controlled by precision mechanical nut depth stops built into each cylinder. Electronically controlled by ENC-18 Programmable digital controller assuring accurate repeatability.Parallelism is ensured by torsion bar that can be easily adjusted by clutch system.
2. New style Digit type manual crowning conveniently mounted on the right side of the bed enabling operator to adjust simply by rotating the dial whilst the analogue digit system indicates the amount of movement
3. Segmented heavy duty 86° offset top punch is segmented for return bend clearance and incorporates a safety key to stop punch dropping.

Specifications

No	Model	Pressure KN	Bending Leng (mm)	Columns Distance (mm)	Open Height (mm)	Throat Depth (mm)	Slide Stroke (mm)	Motor Power (kw)	Machine Size (mm)
1	40T/2500	400	2500	1900	210	200	110	4	2600x1270x1980
2	63T/2500	630	2500	1900	235	250	120	5.5	2600x1360x2050
3	63T/3200	630	3200	2600	235	250	120	5.5	3300x1360x2050
4	80T/2500	800	2500	1900	320	320	150	7.5	2600x1400x2380
5	80T/3200	800	3200	2600	320	320	150	7.5	3300x1400x2380
6	80T/4000	800	4000	3100	320	320	150	7.5	4100x1400x2380
7	100T/2500	1000	2500	1900	330	320	150	7.5	2600x1400x2380
8	100T/3200	1000	3200	2600	330	320	150	7.5	3300x1400x2380
9	100T/4000	1000	4000	3100	330	320	150	7.5	4100x1400x2380
10	100T/5000	1000	5000	4100	330	320	150	7.5	5100x1400x2380
11	125T/2500	1250	2500	1900	330	320	150	7.5	2600x1400x2380
12	125T/3200	1250	3200	2600	330	320	150	7.5	3300x1400x2380
13	125T/4000	1250	4000	3100	330	320	150	7.5	4100x1400x2380
14	125T/5000	1250	5000	4100	330	320	150	7.5	5100x1400x2380
15	160T/2500	1600	2500	1900	400	320	200	11	2600x1550x2580
16	160T/3200	1600	3200	2600	400	320	200	11	3300x1550x2580
17	160T/4000	1600	4000	3100	400	320	200	11	4100x1550x2580
18	160T/5000	1600	5000	4100	400	320	200	11	5100x1550x2580
19	160T/6000	1600	6000	4800	400	320	200	11	6100x1550x2580
20	200T/2500	2000	2500	1900	435	320	200	15	2600x1650x2900
21	200T/3200	2000	3200	2600	435	320	200	15	3300x1650x2900
22	200T/4000	2000	4000	3100	435	320	200	15	4100x1650x2900
23	200T/5000	2000	5000	4100	435	320	200	15	5100x1650x2900
24	200T/6000	2000	6000	4800	435	320	200	15	6100x1650x2900
25	250T/2500	2500	2500	1900	435	320	200	18.5	2600x1750x3070
26	250T/3200	2500	3200	2600	435	320	200	18.5	3300x1750x3070
