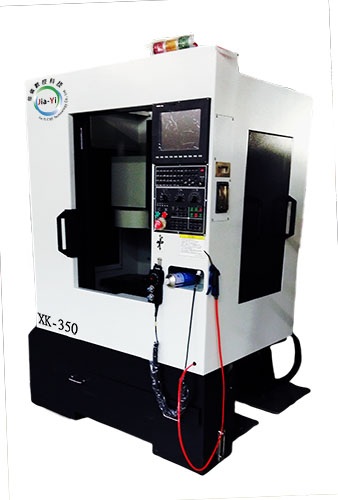

Vertical CNC
Model: XK-350
Category: Machine Tools / Machining Centers / Machining Centers, Vertical
Characteristics
Meehanite structure, asmall amount of deformation, high rigidity!
High speed and high precision! The best choice for small parts production!
The same area can be placed more machines, increase productivity, maximize floor effect.
Features:
The short nose spindle presents outstanding rigidity. It also may increase
efficiency while lowering tool wear.
15 meters rapid traverse on three axes greatly reduces machining time.
Stable automatic tool change system not only reduces non-cutting time,
but also extends spindle life.
Application category:
Watches / 3C / mold / mobile phone panel / electrode / screws / lens / dental
/ medical / research and development / educational institutions and other industries
Specifications
| Model | XK-350 |
| X/Y/Z axis travel(mm) | 350/250/300 |
| Spindle nose to table(mm) | 70~390 |
| Control unit (optional) | FANUC/MITSUBISHI M70/PC Based |
| 3axis Motor(kw) | 0.75/0.75/1 |
| Type of spindle | BT-30 |
| Spindle transmission | Belt Drive |
|
Spindle R.P.M.(rpm) |
10000 |
| Spindle motor(kw) | 2.2 |
| X/Y/Z rapid traverse(M/min) | 15/15/15 |
| Ballscren | ø25/P5/C3 |
| Liner guide | HIWIN RGH 25mmx4 |
| Table size(mm) | 400x250 |
| T-slot(WxNo.xPitch)(mm) | 18x3x125 |
| Table loading capacity(kg) | 60 |
| Tool selection method | Presented carousel type |
| No. of tools(pcs) | 8 |
| Max. tool weight(kgs) | 3 |
| Machine size(LxWxH)mm | 1600x1300x1900 |
| Max. machine weight(kg) | 1300 |
|
Design and specification are subject to change without prior notice. |
|
