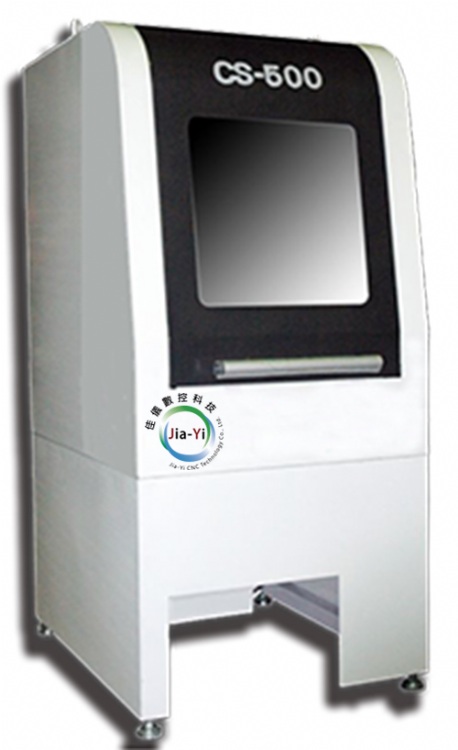

small five-axis gantry
Model: CS-500
Category: Machine Tools / Milling Machines / CNC Engraving Machines
Characteristics
High Accuracy! High Dust-proof!
The machine size is especially suit for studio or factory, which is short of space.
The best buy for small parts milling machine.
Application category:
Dental milling, Educational institutions, Graphite, Jewelry, 2.5D milling, 3D milling.
Suitable processing materials:
Zirconia, Acrylic, Wax, Wood, Gold, Sliver, Copper, Aluminum, Titanium.
Specifications
| CS Model | CS-500 |
| X/Y/Zaxis travel(mm) | 100x100x100 |
| A axis travel(mm) | 360° |
| C axis travel(mm) | ±110° |
| Controller | Syntec/LNC/Hurco |
| X/Y/Z Drive motor(Kw) | AC0.4 |
| Spindle taper | Built-in/ER16 |
|
Spindle speed(rpm) |
60000/55000 |
| Spindle power(Kw) | 1.5/2.7(Optional) |
| Tool diameter(mm) | 1~10(Optional) |
| Tool change mode | ATC |
| Tool Magazines type | Vertical-type magazine |
| Tool Magazines capacity | 6 |
| Processing mode | Dry/Wet |
| Power | Single phase/3-phase or single phase/220V |
| Compressed air supply(bar) | 7 |
| Dimension(cm)(LxWxH) | 70x88x156 |
| Weight(kg) | 385 |
| Optional | Automatic tool length measuringStandard |
|
Design and specification are subject to change without prior notice. |
|
