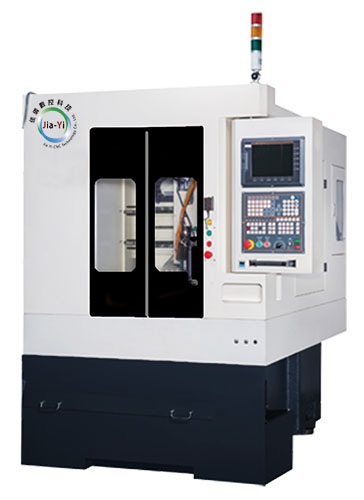

High Speed CNC Double Column Machining Center
Model: XK-11060
Category: Machine Tools / Milling Machines / CNC Engraving Machines
Characteristics
High Speed Double Column CNC engraver!
The body structure is made by Meehanite.High rigidity!
High stability!
It is suit for 2.5D and 3D surface engraving.
Application category:
Mould, Glasee grinding, 3D surface milling, Watch Engraving.
Suitable processing materials:
Metal, Glasee
Specifications
| XK Model | XK-11060 |
| X/Y/Zaxis trave(mm) | 1100x600x500 |
| Spindle nose to table(mm) | 150~650 |
| Table size(mm) | 1200x600 |
| T-slot(WxNo.xPitch)(mm) | 18x100x5 |
| Table loading capacity(kg) | 1000 |
| Type of spindle | HSK-A63 |
|
Spindle motor(Kw) |
18 |
| Spindle R.P.M.(rpm) | 20000 |
| X/Y/Z rapid Feed(M/min) | 30/30/30 |
| Cutting capacity(mm/min) | 20000 |
| Tool Magazines type | Umbrella |
| Tool capacity(pcs) | 20 |
| X/Y/ZServo motor(Kw) | AC 7/7/7 |
| Dimension(cm)(LxWxH) | 310x230x300 |
| Weight(kg) | 11000 |
|
Design and specification are subject to change without prior notice. |
|
