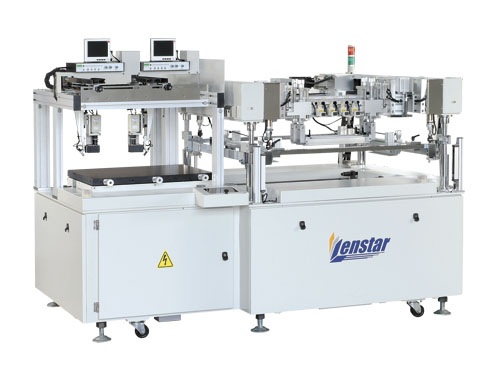

CCD SEMI-AUTO SCREEN PRINTING MACHINE
Model: BHMO-55
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Auto Flat Screen Printers
Characteristics
1. Foundation plate adjusts after the vision enters printing, enhances the accuracy.
2. The printing finished-products may the jail look at the accuracy under the CCD lens, increases examines good rage.
3. The surveillance screen target graph has the circular, the square shape and the cross middle line, the graph may coordinate the target to do on a small scale greatly adjusts the size.
4. Four point to sustain the squeeze base and the floor horizontal precision is high, the printing uniformity is good.
5. Easy operation with touching system. Showing breakdown and solutions.
6. The table mask inflow function, may adsorb thin steel plate printing.
Specifications
規格: SPECIFICATION
電 源：AC220v,380v,3PH,Se4.6kw POWER 供給高度：920±50mm SUPPLY HEIGHT 空壓需求：6kg/cm2 AIR PRESSURE 台面尺寸：700X550mm TABLE SIZE 印刷面積：MAX:L550XW550mm PRINTING AREA MIN:L100XW100mm 裝框尺寸：MAX:L900XW900mm FRAME SIZE MIN:L600XW600mm 機台重量：1400kg MACHINE WEIGHT 機台尺寸：L2250XW1520XH1650mm DIMENSION
