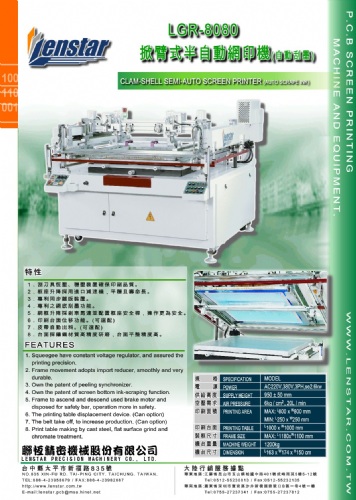

CLAM-SHELL SEMI-AUTO SCREEN PRINTER MACHINE
Model: LGR-8080
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Auto Flat Screen Printers
Characteristics
1. Squeegee have constant voltage regulator, and assured the printing precision.
2. Frame movement adopts import reducer, smoothly and very durable.
3. Own the patent of peeling synchronizer.
4. Own the patent of screen bottom ink-scraping function.
5. Frame to ascend and descend used brake motor and disposed for safety bar, operation more in safety.
6. The printing table displacement device. (Can option)
7. The belt take off, to increase production. (Can option)
8. Print table making by cast steel, flat surface grind and chromate treatment.
Specifications
規格: SPECIFICATION
電 源：AC220v,380v,3PH,Se3.5kw POWER 供給高度：950±50mm SUPPLY HEIGHT 空壓需求：6kg/cm2 AIR FRESSURE 台面尺寸：1000X1000mm TABLE SIZE 印刷面積：MAX:L800XW800mm PRINTING AREA MIN:L250XW250mm 裝框尺寸：MAX:L1180XW1100mm FRAME SIZE 機台重量：1200kg MACHINE WEIGHT 機台尺寸：L1630XW2030XH1500mm DIMENSION
