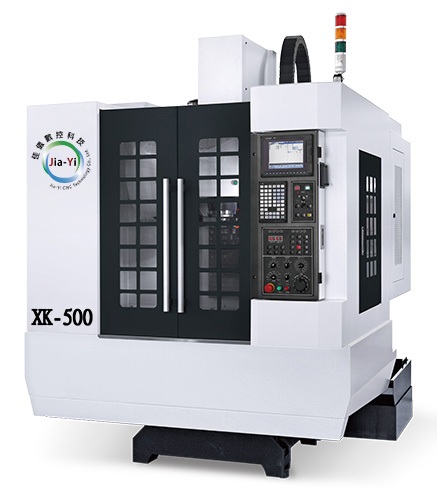

CNC Vertical Machining Centers
Model: XK-500
Category: Machine Tools / Machining Centers / Machining Centers, Vertical
Characteristics
Meehanite structure, a small amount of deformation, high rigidity!
High speed and high precision! The best choice for small parts production!
The same area can be placed more machines, increase productivity, maximize floor effect.
Features:
-The short nose high speed spindle provides sensitive response with 4,000 rpm
tapping operations.
-Rear chip removing design features excellent chip removing angle and large
flow chip flushing system.
-48 meters rapid traverse on three axes greatly reduces machining time.
-Stable automatic tool change system not only reduces non-cutting time,
but also extends spindle life.
Application category:
3C/hardware/molds/automotive parts/medical devices and aerospace parts.
Specifications
| Model | XK-500 |
| X/Y/Z axis travel(mm) | 500/400/450 |
| Spindle nose to table(mm) | 200~650 |
| Control unit (optional) | FANUC/MITSUBISHI M70/PC Based |
| 3axis Motor(kw) | 1.5/1.5/3.0 |
| Type of spindle | BT-30 |
| Spindle transmission | Direct Drive |
|
Spindle R.P.M.(rpm) |
12000 |
| Spindle motor(kw) | 5.5 |
| X/Y/Z rapid traverse(M/min) | 48/48/48 |
| Ballscren | ø36/P16/C3 |
| Liner guide | RGH 30mm |
| Table size(mm) | 620x420 |
| T-slot(WxNo.xPitch)(mm) | 18x3x125 |
| Table loading capacity(kg) | 250 |
| Tool selection method | Rotary disc type |
| No. of tools(pcs) | 20 |
| Max. tool weight(kgs) | 3 |
| Machine size(LxWxH)mm | 1600x2080x2815 |
| Max. machine weight(kg) | 3200 |
|
Design and specification are subject to change without prior notice. |
|
