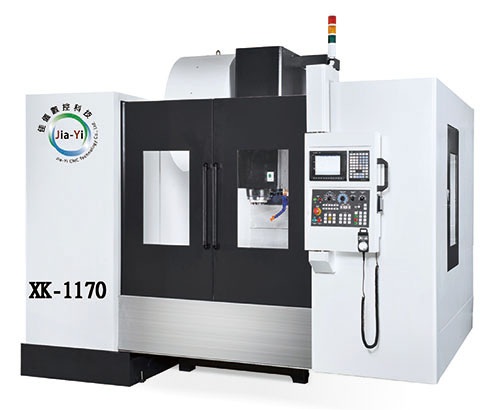

CNC Vertical Machining Centers
Model: XK-1170
Category: Machine Tools / Machining Centers / Machining Centers, Vertical
Characteristics
Its wide range of machining, powerful spindle motor as well as
flexible machining capabilities make it ideal for upgrading industry.
Features:
-Rear chip removing design features excellent chip removing angle and
large flow chip flushing system.
-32 meters rapid traverse on three axes greatly reduces machining time.
-Stable automatic tool change system not only reduces non-cutting
time, but also extends spindle life.
Application category:
Hardware/molds/automotive/communication/medical devices and aerospace.
Specifications
| Model | XK-1170 |
| X/Y/Z axis travel(mm) | 1100/700/700 |
| Spindle nose to table(mm) | 120~820 |
| Control unit (optional) | FANUC/MITSUBISHI M70/PC Based |
| 3axis Motor(kw) | 2.0/2.0/3.5 |
| Type of spindle | BT-40 |
| Spindle transmission | Belt Drive |
|
Spindle R.P.M.(rpm) |
8000 |
| Spindle motor(kw) | 11 |
| X/Y/Z rapid traverse(M/min) | 32/32/30 |
| Ballscren | ø40/P12/C3 |
| Liner guide |
X/Y:HIWIN RGH 45mmx6 Z:HIWIN RGW 45mmx4 |
| Table size(mm) | 1200x700 |
| T-slot(WxNo.xPitch)(mm) | 18x5x130 |
| Table loading capacity(kg) | 700 |
| Tool selection method | Rotary disc type |
| No. of tools(pcs) | 24 |
| Max. tool weight(kgs) | 7 |
| Machine size(LxWxH)mm | 3300x3005x3200 |
| Max. machine weight(kg) | 7100 |
|
Design and specification are subject to change without prior notice. |
|
