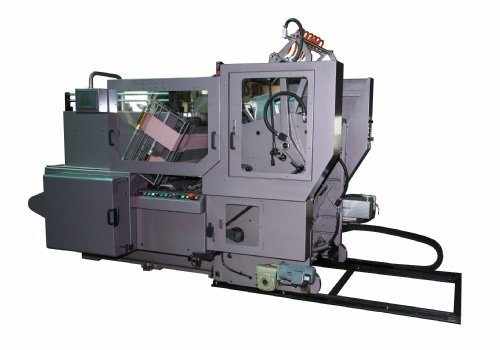

Automatic Foil Stamping Machine
Model: JSF-780F
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Hot Stamping, Printing & Embossing Machines
Characteristics
1. One machine for die-cutting, stamping and embossing.
2. New improvement design on all machine chassis to make easy operation and heavy built with Steel frames structure.
3. Touch screen monitor for entering foil job data, and much-easier-trouble shooting assistant page, to show all possible machine errors with in one page.
4. Adopt heavy duty and large size servo-motor for the foil pull system, to give much accurate foil pulling and easy access for the operator to load or unload foils.
5. New design electrical control by PLC (Programmable Logic Control System) and work with an encoder to obtain accurately machine running monitoring system.
�
Specifications
Size of Cutting Plate 800 x 600 mm
Sheet Size 780 x 570 mm (max.) – 280 x 250 mm (min)
Inside Chase Size 750 x 540 mm
Max. Stamping Area 780 x 550 mm
Power of Heating Plate 8 KW
Max. Temperature 180℃
Heating Zone 4
Foil Puller 2
Foil Diameter 200 mm
Thickness of Stock For Stamping 0.12 – 3 mm
Thickness of Stock For Die-cutting 0.1 – 2 mm
Max. Speed 2200 sheets/hr
Machine Weight 5000 kg
Machine Dimension (cm) L 380 x W 195 x H 205
