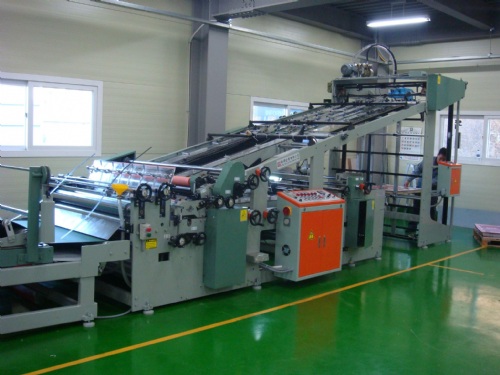

Automatic Flute Laminator Machine
Model: ST-1850
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Laminating Machines
Characteristics
SBL AUTOMATIC FLUTE LAMINATOR is designed for sheet-to-sheet laminating of paper and cardboard-to-cardboard, and corrugated board.
A combination of mechanical and photocell controls to bring in consistent registration accuracy of less than +/- 1.5 mm.
Automatic suction cup Top Feeder is designed to handle materials from 200 up to 800 g/m2
Equipped with 4 to 6 sets of forwarding suckers and powerful vacuum pump imported from Germany and Japan, ensuring smooth transportation of top sheets.
Standard with 2-section table allowing the operation to do pre-loading on the lower section table during machine running to save down time.
Optional with Pre-loading Device outside of Top Feeder to increase production efficiency.
Specifications
Model ST-1100 ST-1850
Max. Sheet Size 1100 X 1100 mm 1850 x 1100 mm
Min. Sheet Size 350 x 370 mm 550 x 370 mm
Machine Speed 100 PC /MIN 80 PC / MIN
Machine Length 11980 mm 13150 mm
Power Required 15 HP 22.5 HP
