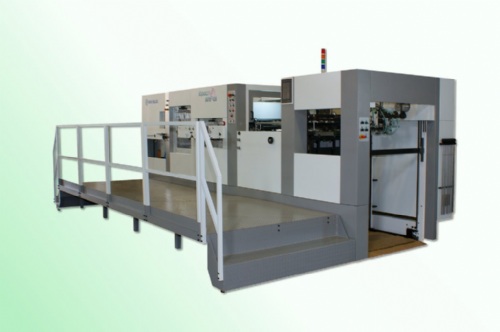

Auto Die-cutting and Creasing Platen Machine with stripping station
Model: 1060CS
Category: Packaging, Printing, Food & Pharmacy Machinery / Other Machinery / Other Machinery
Characteristics
SBL developed its latest die-cutting and creasing platen, model 1060CS is capable of 8,000 sheets per hour speed、easy operation system、
high performance feeder and delivery station、quick-change die plate micro-adjustment system、precise position function、well-execute stripping and clean collecting device.
1060CS is the first choice in the new generation post press converting machinery from SmoothBonweLL.
Specifications
max. paper size : 1060 x 760 mm
min. paper size : 400 x 350 mm
max. cutting size : 1050 x 740 mm
max. cutting pressure : 300 tons
stock range : 0.1 - 2 mm
minimum gripper waste : 9.5 mm
maximum mechanical speed : 8000 sheets/hour
total power required : 21.75 KW
machine dimension : 5975 L x 4033 W x 2237 H mm
machine net weight : 17 tons
