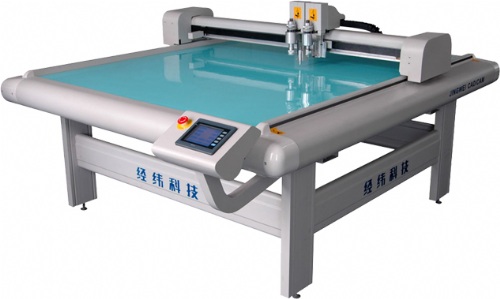

sample carton box making machine
Model: CB-1311
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Bag, Box and Carton Making Machines
Characteristics
The Jingwei CB series flat-bed cutting machine is a fast, high-quality solution for sample-making of folding carton boxes, and it is very effective for small-lot production which saves the cost and save the time for waiting time for a cutting die.
Discover productive Jingwei CB series machine enabling you to be faster and more effective.
Specifications
Model Name EDO-CB1311
Configuration Cutting, creasing and scoring of sample boxes wth drag or oscillating knife
Cutting speed 200-600mm/s
Moving Speed 800-1000mm/s
Cutting Depth Up to 15mm
Min.Punch's diameter 5mm
Cutting Media Corrugated cardboard, PVC board, PU, Grey cardboard, Folding carton, Carbon composite material etc.
Multifunctional Tool Heads Built-in flexibility in oscillating cutting, dotted cutting, kiss cutting, creasing, plotting and locating with laser
Pen/Blade/Wheel Water-based fibertip pen /Cutting blades of different type/ Creasing wheel with different size
Media Set Device Vacuum suction
Repeat Precision ≤0.1mm
Programmable Resolution 0.025 / 0.01 / 0.1 available
Interface Serial port and Ethernet port
Buffer Memory 1G
Data transfer rate 100MB/S
Command Sets HP-GL compatible format
Control Panel Touch screen
Transmitting system Digital servo driver; straight rail; synchrunous belt
Power Supply AC 220V/380V10% 50HZ / 7KW
Fuse 6AB30A
Operating Environment 10 to 35 deg.C
Cutting Area 1300mm1100 mm
