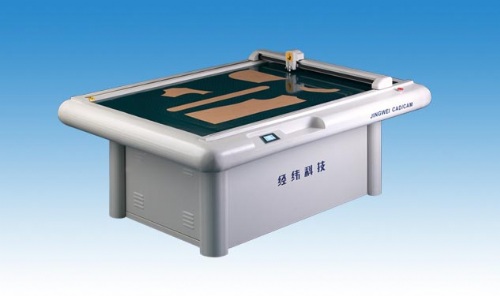

Flatbed Cutting Plotter
Model: EDO1873A
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Other Machinery
Characteristics
The flatbed cutting plotter is mainly used for making garment cardboard pattern. There are two tools in the head, one is knife for cutting, other is pen for drawing. It can help your cut the cardboard pattern for you automaticaly, fast speed with high precision.
Specifications
Model EDO-1873A Flatbed cutting plotter
Configuration Flat-bed
Drive System Digital Servo
Max. Cutting speed Up to 1200mm/s
Cutting Material All kinds of Hard Cardboard, Plastic Board and Fibrous Cardboard etc.
Cutting Depth ≤2mm
Dual Tool system With 4 sets of different device including pen, half-knife and full knife etc.
Compatible Cutting pen Water-based fiber-tip pen, Oil-based pen, Ballpoint etc.
Compatible Cutting knife Special Tungsten Steel knife
Fixture Vacuum absorption
Mechanical Resolution 0.007mm
Programmable Resolution HP-GL 0.025MM / 0.01MM / 0.1M
Interface Serial Port / Ethernet Port
Buffer Capacity 1G
Command Mode HP-GL compatible format
Display Panel Touch screen
Transmitting Material Straight Rail Synchronous Belt
Power Supply AC 220V ±10%, 50HZ
Operating Environment 10 to 35 deg.C
Max. Cutting Area 1500*1200mm
